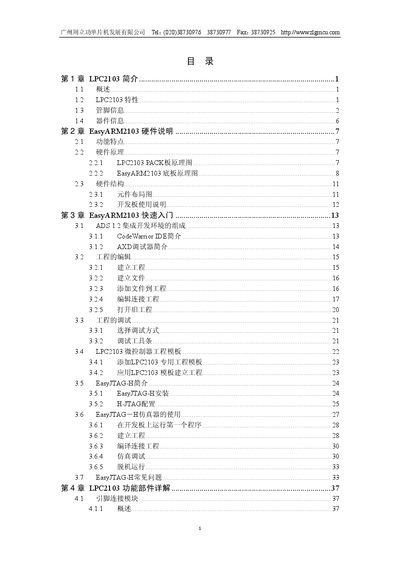

ZLG LPC2103 Microcontroller User Manual
This manual introduces the LPC2103 microcontroller, covering its 16/32‑bit ARM7TDMI‑S core, memory resources, peripheral set, and pin configurations for both LQFP48 and PLCC44 packages. It provides detailed hardware schematics, pin‑out tables, and descriptions of GPIO, timers, ADC, UART, SPI, SSP, and interrupt controller.
The document also explains the development environment, including CodeWarrior IDE, EasyJTAG‑H debugging, and example projects. Step‑by‑step instructions guide users through creating, compiling, and debugging applications, as well as configuring PLL, power modes, and real‑time clock. This manual is written in Chinese.
ZLG LPC2103 specifications
| CPU core | 16/32‑bit ARM7TDMI‑S |
|---|---|
| Flash memory | 32 KB |
| SRAM | 8 KB |
| Maximum clock frequency | 70 MHz |
| GPIO pins | 32 |
| External interrupt pins | 13 |
| ADC | 10‑bit, 8 channels |
| Timers | 2 × 32‑bit timers, 2 × 16‑bit timers |
| UART interfaces | 2 |
| SPI/SSP interfaces | SPI and SSP |
| Real‑time clock | Low‑power RTC with 32 kHz input |
| Interrupt controller | Vector Interrupt Controller (VIC) |
All ZLG LPC2103 documents by type
Instruction set, parameters and examples for configuring or programming the device.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Where can I find the GPIO usage notes and register description?
GPIO usage notes and register description are provided in section 4.23 of the manual.
How do I run the first program on the development board?
The steps to run the first program on the development board are described in section 3.6.1.
What CPU core does the LPC2103 use?
The LPC2103 is built around a 16/32‑bit ARM7TDMI‑S microcontroller core.
What is the maximum operating frequency of the LPC2103?
It can operate at frequencies up to 70 MHz.
