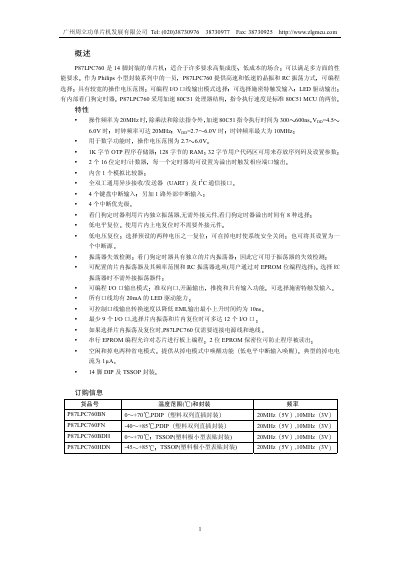

ZLG P87LPC760 Microcontroller User Manual
The P87LPC760 features an accelerated 80C51 core that runs up to 20 MHz with a supply voltage of 4.5‑6.0 V (2.7‑6.0 V minimum). It provides 1 KB OTP program memory, 128 B RAM, 32 B user code area, two 16‑bit timers, one on‑chip comparator, UART and I2C communication, and up to 12 configurable I/O pins.
The device is offered in 14‑pin DIP and TSSOP packages. It includes a watchdog timer with eight timeout selections, power‑on reset, low‑voltage reset, and oscillator‑failure detection. Detailed register maps, pin assignments, and peripheral configurations are described throughout the manual. This manual is written in Chinese.
ZLG P87LPC760 specifications
| Maximum clock frequency | 20 MHz (Vbp 4.5‑6.0 V) |
|---|---|
| Operating voltage (digital) | 2.7‑6.0 V |
| RAM size | 128 B |
| User code area | 32 B |
| Timers / counters | Two 16‑bit timers/counters |
| Comparator / ADC | One precision comparator, can form 2‑channel ADC with external RC |
| UART | Full‑duplex asynchronous UART |
| Interrupt inputs | 5 (4 keyboard + 1 external) |
| Interrupt priority levels | 4 |
| Internal oscillator | Configurable, selectable RC option |
| I/O pins | 9‑12 pins (up to 12 with internal oscillator and reset) |
| LED driver per I/O | 20 mA |
| Power consumption (3.3 V) | 17‑10 mA @4‑20 MHz; 0.044‑1.7 mA @100 kHz‑4 MHz; 9‑44 µA @20‑100 kHz |
| Operating temperature | -40 °C to 85 °C (industrial) |
| Package | 14‑pin DIP, SOP/TSSOP |
All ZLG P87LPC760 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum operating frequency of the P87LPC760?
The microcontroller can run up to 20 MHz when Vbp is between 4.5 V and 6.0 V.
How many I/O pins are available on the P87LPC760?
The device provides a minimum of 9 I/O pins and up to 12 when the internal oscillator and reset are used.
What is the operating voltage range of the P87LPC760?
The device operates from 2.7 V up to 6.0 V, with a typical range of 4.5‑6.0 V for 20 MHz operation.
How many I/O pins does the P87LPC760 provide?
It provides a minimum of 9 I/O pins and can be configured for up to 12 pins when using the internal oscillator and reset.
