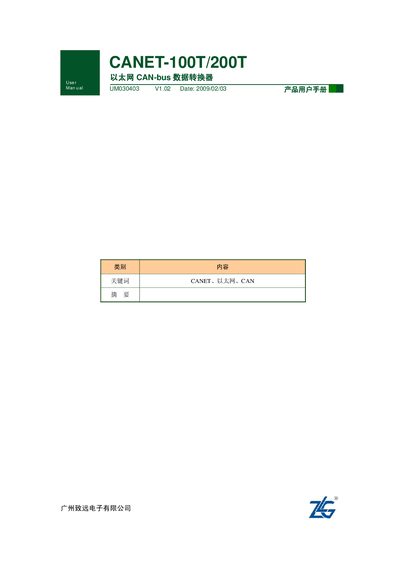

ZLG CANET-100T/200T Ethernet CAN-bus Data Converter User Manual
The ZLG CANET-100T/200T is an industrial‑grade Ethernet to CAN‑bus data converter that provides one or two CAN ports and a 10M/100M Ethernet interface with TCP/IP support. It is designed for robust operation in harsh environments, offering redundancy options and multiple communication modes such as TCP Server, TCP Client and UDP.
The manual includes a functional overview, hardware interface description, connection instructions, quick‑start steps, configuration using the ZNetCom software, and detailed specifications. It also provides troubleshooting, repair procedures, and warranty information. This manual is written in Chinese.
ZLG CANET-100T specifications
| Ethernet Interface | 10M/100M auto‑adaptive, RJ45, 2 kV isolation |
|---|---|
| CAN Port Count | 1 (CANET‑100T) or 2 (CANET‑200T) |
| CAN Baud Rate | 5 k–1000 kbps |
| Power Supply Voltage | 9 V–24 V DC |
| Maximum Power Consumption | 150 mA (CANET‑100T), 200 mA (CANET‑200T) |
| Operating Temperature | -25 °C to 75 °C |
| Humidity Range | 5 % – 95 % RH (no condensation) |
Source: ZLG CANET-100T/200T Ethernet CAN-bus Data Converter User Manual
All ZLG CANET-100T documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many CAN ports does the CANET‑100T have?
The CANET‑100T supports a single CAN port.
From: ZLG CANET-100T/200T Ethernet CAN-bus Data Converter User Manual
What Ethernet speeds are supported?
The device supports 10 Mbit/s and 100 Mbit/s auto‑adaptive Ethernet.
From: ZLG CANET-100T/200T Ethernet CAN-bus Data Converter User Manual
