This document describes the features of the XL1193 HBS-compatible driver and receiver monolithic IC, including support for hardware encoding and decoding, single 5V power supply, and built-in overcurrent protection. The chip is suitable for a wide range of devices, such as telephone equipment, security equipment, audiovisual equipment, and air conditioning equipment.

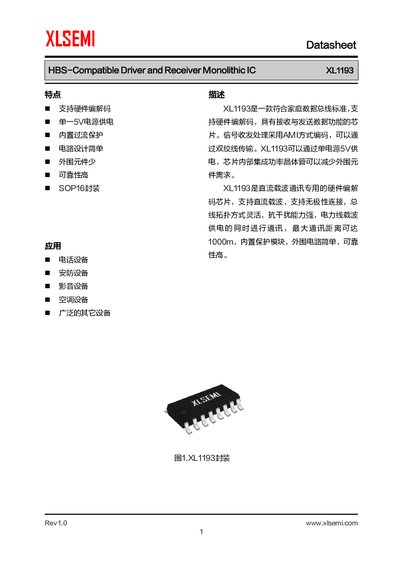

The XLSEMI XL1193 is a monolithic integrated circuit designed for hardware encoding and decoding compatible with the Home Bus System (HBS) standard. It operates on a single 5V power supply and is intended for use in telephone equipment, security devices, audio-visual equipment, and air conditioning units. The chip supports AMI encoding for data transmission over twisted pairs and features a built-in overcurrent protection module to ensure high reliability with minimal external components. This manual is written in Chinese.
| Operating Voltage Range | 4.5 ~ 5.5 V |
|---|---|
| Recommended Power Supply Voltage | 4.75 ~ 5.25 V |
| Maximum Communication Distance | 1000m |
| Package Type | SOP16 |
| Operating Junction Temperature Range | -40 ~ 125 ℃ |
| Input Current (PIN5=5V) | 9 mA |
| Output Signal Voltage (VTO) | 3.8 ~ 4.6 V |
| Input Impedance (PIN15 and PIN16) | 25 ~ 46 KΩ |
It is designed for use in telephone equipment, security devices, audio-visual equipment, and air conditioning equipment.
Yes, it supports hardware encoding and decoding compatible with HBS standards.
The maximum communication distance can reach 1000 meters.
