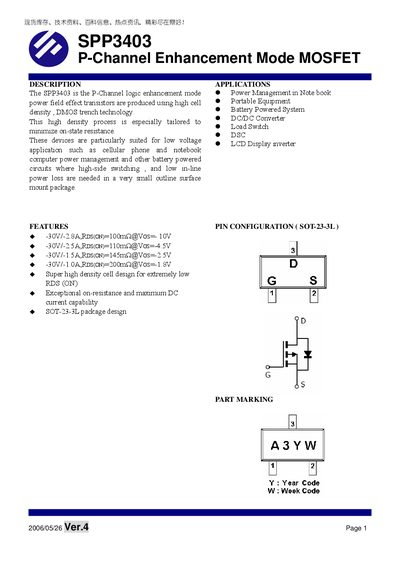

SYNC Power SPP3403 P-Channel Enhancement Mode MOSFET Datasheet
The SPP3403 is a P‑Channel logic enhancement mode power MOSFET built with high‑density DMOS trench technology, optimized for low on‑state resistance. It is intended for low‑voltage power‑management applications such as notebook computers, portable equipment, battery‑powered systems, DC/DC converters, load switches and LCD inverter circuits.
The document lists the pin configuration (SOT‑23‑3L package), ordering information, absolute maximum ratings, detailed electrical characteristics, typical performance curves and the mechanical dimensions of the package. Legal and warranty notices are included on the final page.
SYNC SPP3403 specifications
| Drain‑Source Voltage (Vdss) | -30 V |
|---|---|
| Gate‑Source Voltage (Vgss) | +12 V |
| On‑State Drain Current (Id) typical | 2.8 A (Vgs = -10 V) |
| On‑Resistance (RDS(on)) typical | 0.080 Ω |
Source: SYNC Power SPP3403 P-Channel Enhancement Mode MOSFET Datasheet
All SYNC SPP3403 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage for the SPP3403?
The maximum drain‑source voltage is -30 V.
From: SYNC Power SPP3403 P-Channel Enhancement Mode MOSFET Datasheet
What is the maximum drain‑source voltage for the SPP3403?
The SPP3403 can tolerate a maximum drain‑source voltage of –30 V.
What package does the SPP3403 use?
The SPP3403 is supplied in an SOT‑23‑3L surface‑mount package.
From: SYNC Power SPP3403 P-Channel Enhancement Mode MOSFET Datasheet
What is the maximum drain‑source voltage for the SPP3403?
The device can withstand a drain‑source voltage of up to –30 V.
From: SYNC Power SPP3403 P-Channel Enhancement Mode MOSFET Datasheet
