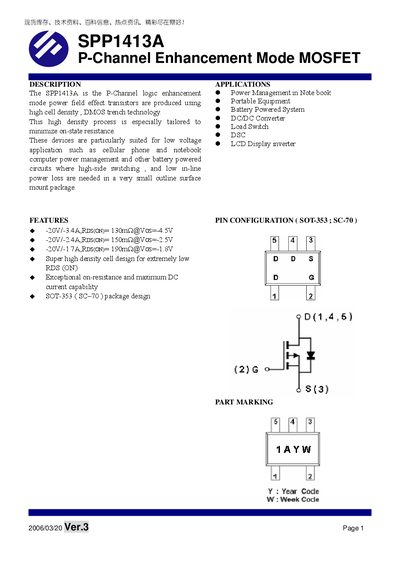

SYNC Power SPP1413A P-Channel Enhancement Mode MOSFET Datasheet
The SPP1413A is a P‑Channel logic enhancement mode MOSFET built with a high‑density DMOS trench process. It offers very low on‑state resistance and is suited for low‑voltage power‑management applications such as cellular phones, notebook computers, and other battery‑powered circuits where high‑side switching and minimal power loss are required.
The datasheet lists key ratings including a -20 V drain‑source voltage, +12 V gate‑source voltage, up to -6 A pulsed drain current, and typical on‑resistance as low as 0.130 Ω. The device is supplied in a compact SOT‑353 (SC‑70) surface‑mount package and includes detailed pin descriptions, ordering information, and thermal characteristics.
SYNC SPP1413A specifications
| Drain‑Source Voltage (V_DSS) | -20 V |
|---|---|
| Gate‑Source Voltage (V_GSS) | +12 V |
| Pulsed Drain Current (I_pM) | -6 A |
| Continuous Drain Current (I_D) @ 150 °C | -1.7 A |
| Total Gate Charge (Q_g) | 4.8 nC |
| Input Capacitance (C_iss) | 485 pF |
| Thermal Resistance Junction‑to‑Ambient (R_θJA) | 105 °C/W |
Source: SYNC Power SPP1413A P-Channel Enhancement Mode MOSFET Datasheet
All SYNC SPP1413A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage of the SPP1413A?
The maximum drain‑source voltage is -20 V.
From: SYNC Power SPP1413A P-Channel Enhancement Mode MOSFET Datasheet
What package does the SPP1413A use?
It is supplied in an SOT‑353 (SC‑70) surface‑mount package.
From: SYNC Power SPP1413A P-Channel Enhancement Mode MOSFET Datasheet
What is the maximum drain‑source voltage for the SPP1413A?
The maximum drain‑source voltage is –20 V.
From: SYNC Power SPP1413A P-Channel Enhancement Mode MOSFET Datasheet
What package type does the SPP1413A use?
It is supplied in a SOT‑353 (SC‑70) surface‑mount package.
From: SYNC Power SPP1413A P-Channel Enhancement Mode MOSFET Datasheet
