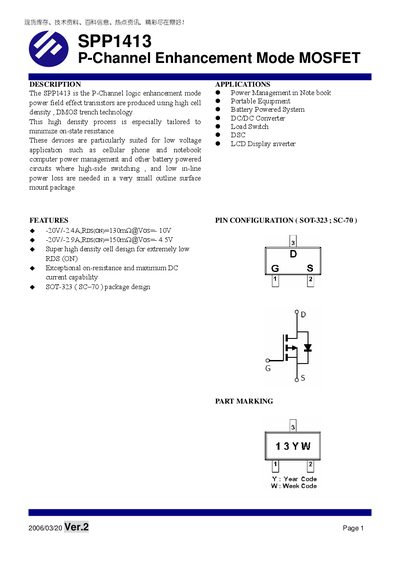

SYNC Power SPP1413 P-Channel Enhancement Mode MOSFET Handbook
The SPP1413 is a P‑Channel logic enhancement mode MOSFET designed for low‑voltage power management in notebook, cellular phone, and other battery‑powered circuits. Its high‑density DMOS trench technology enables low on‑state resistance and high current capability in a compact SOT‑323 (SC‑70) package.
Key features include a maximum drain‑source voltage of –20 V, typical on‑resistance as low as 0.30 Ω, and a wide range of operating temperatures. The datasheet lists pin configuration, ordering information, absolute maximum ratings, electrical characteristics, and typical performance curves.
SYNC SPP1413 specifications
| Drain‑Source Voltage (V_DSS) | -20 V |
|---|---|
| Gate‑Source Voltage (V_GS) | +12 V |
| Continuous Drain Current (ID) at 70 °C | -2.0 A |
| Pulsed Drain Current (I_pM) | 8 A |
| Package Type | SOT‑323 (SC‑70) |
Source: SYNC Power SPP1413 P-Channel Enhancement Mode MOSFET Handbook
All SYNC SPP1413 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage for the SPP1413?
The maximum drain‑source voltage is –20 V.
From: SYNC Power SPP1413 P-Channel Enhancement Mode MOSFET Handbook
What package does the SPP1413 use?
It is supplied in a SOT‑323 (SC‑70) surface‑mount package.
From: SYNC Power SPP1413 P-Channel Enhancement Mode MOSFET Handbook
What is the maximum drain‑source voltage of the SPP1413?
The maximum drain‑source voltage is -20 V.
From: SYNC Power SPP1413 P-Channel Enhancement Mode MOSFET Datasheet
What is the maximum continuous drain current at 70 °C?
The device can handle up to -2.0 A continuous drain current at 70 °C.
From: SYNC Power SPP1413 P-Channel Enhancement Mode MOSFET Datasheet
