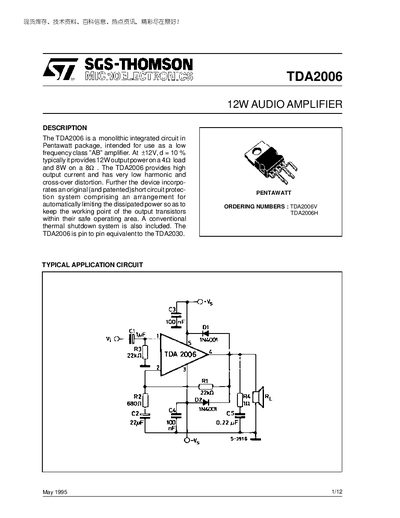

SGS-Thomson TDA2006 12W Audio Amplifier Datasheet
The TDA2006 is a monolithic integrated circuit in a Pentawatt package, designed for low‑frequency class‑AB audio amplification. It delivers up to 12 W into a 4 Ω load at +12 V with 10 % total harmonic distortion and includes built‑in short‑circuit and thermal‑shutdown protection.
The document lists absolute maximum ratings, detailed electrical characteristics, typical application circuits, and mechanical dimensions of the package, along with practical layout recommendations for PCB designers.
STMicroelectronics TDA2006 specifications
| Supply Voltage (Vs) | +6 V to +15 V |
|---|---|
| Output Power (8 Ω load) | 8 W |
| Output Peak Current (internal limit) | 3 A |
| Thermal Resistance (junction‑case) | 3 °C/W |
| Input Offset Voltage | +8 mV |
| Package Dimensions (A) | 4.8 mm (0.189 in) |
All STMicroelectronics TDA2006 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
