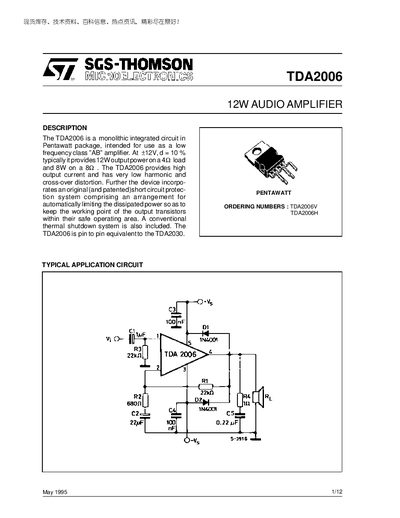

The TDA2006 is a monolithic integrated circuit in a Pentawatt package, designed for low‑frequency class‑AB audio amplification. It delivers up to 12 W into a 4 Ω load at +12 V supply with 10 % total harmonic distortion, and includes short‑circuit protection and thermal shutdown.
The document provides schematic diagrams, absolute maximum ratings, electrical characteristics, thermal data, pin connections, frequency‑response graphs, practical layout recommendations, and mechanical dimensions of the package.
| Supply Voltage (Vs) | +6 V to +15 V |
|---|---|
| Output Power (8 Ω load) | 8 W (10 % THD) |
| Output Peak Current | 3 A (internally limited) |
| Power Dissipation | 20 W at Tcase = 90 °C |
| Thermal Resistance (junction‑case) | 3 °C/W |
The device can be operated up to +15 V supply.
The junction‑to‑case thermal resistance is specified as 3 °C/W.
