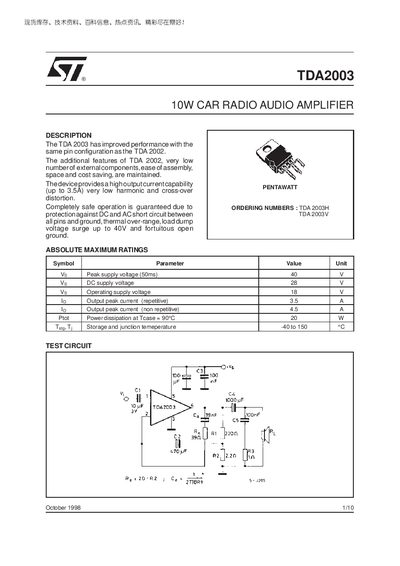

STMicroelectronics TDA2003 10W Car Radio Audio Amplifier Datasheet
The TDA2003 is a 10 W car‑radio audio amplifier with a pin‑compatible design to the TDA2002. It offers high output current capability (up to 3.5 A) and low harmonic distortion, making it suitable for automotive audio applications. The device includes built‑in protection against short circuits, thermal overload, load‑dump voltage surges and open‑ground conditions.
Key specifications include a DC supply voltage rating of 28 V, an operating supply voltage of 18 V, a maximum power dissipation of 20 W, and an output power of up to 10 W into a 2 Ω load. The amplifier operates over a frequency range of 40 Hz to 15 kHz (‑3 dB) and features a junction‑case thermal resistance of 3 °C/W.
STMicroelectronics TDA2003 specifications
| DC supply voltage (max) | 28 V |
|---|---|
| Operating supply voltage | 18 V |
| Output peak current (repetitive) | 3.5 A |
| Power dissipation at Tcase=90 °C | 20 W |
| Junction temperature range | -40 °C to 150 °C |
| Thermal resistance junction‑case (max) | 3 °C/W |
| Quiescent output voltage (typ) | 6.9 V |
| Quiescent drain current (typ) | 50 mA |
| Efficiency at 10 W | 65 % |
| Frequency response (‑3 dB) | 40 Hz to 15 kHz |
Source: STMicroelectronics TDA2003 10W Car Radio Audio Amplifier Datasheet
All STMicroelectronics TDA2003 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage the TDA2003 can handle?
The device can tolerate a peak supply voltage of 40 V for 50 ms and a DC supply voltage up to 28 V.
From: STMicroelectronics TDA2003 10W Car Radio Audio Amplifier Datasheet
What is the recommended operating supply voltage?
The recommended operating supply voltage is 18 V.
From: STMicroelectronics TDA2003 10W Car Radio Audio Amplifier Datasheet
What is the maximum operating supply voltage?
The maximum operating supply voltage is 18 V.
From: STMicroelectronics TDA2003 10W Car Radio Audio Amplifier Datasheet
