Start here

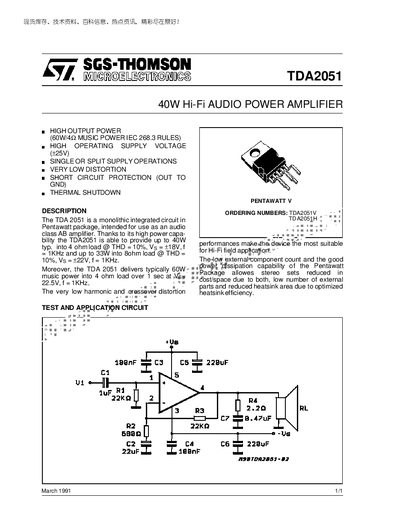

TDA2051 Audio Power Amplifier Datasheet
The TDA2051 is a monolithic integrated circuit in a Pentawatt package designed for Hi‑Fi audio applications. It can deliver up to 40 W typical into a 4 Ω load at 1 kHz with THD ≤10% when powered from +18 V, and up to 33 W into an 8 Ω load at +22 V.
The device includes several protection features such as short‑circuit protection (output to ground) and thermal shutdown. Its low external component count and efficient heat‑sink design make it suitable for compact stereo equipment.
STMicroelectronics TDA2051 specifications
| Typical Output Power (4 Ω) | 40 W |
|---|---|
| Typical Output Power (8 Ω) | 33 W |
| Supply Voltage Range | Up to 425 V |
| Distortion | Very low (THD ≤10%) |
| Protection | Short‑circuit and thermal shutdown |
All STMicroelectronics TDA2051 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical output power of the TDA2051 into a 4 Ω load?
It delivers about 40 W typical into a 4 Ω load at 1 kHz with THD ≤10% when powered from +18 V.
What protection features are built into the TDA2051?
The IC includes short‑circuit protection (output to ground) and thermal shutdown to protect against overload.
What protection features are included in the TDA2051?
It includes short‑circuit protection that grounds the output and a thermal shutdown function.
