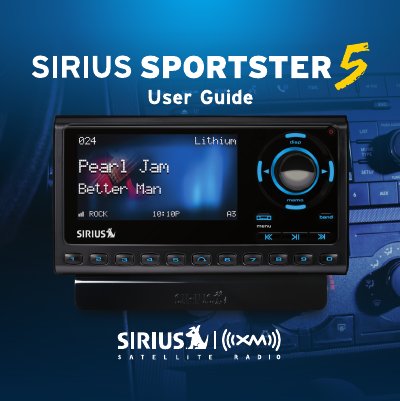

SIRIUS XM Radio Sportster 5 User Manual
The SIRIUS XM Radio Sportster 5 is a portable satellite radio receiver featuring a large multi-color display, customizable background colors, and enhanced real-time program guide capabilities. It supports listening to satellite radio via an included Aux In cable or the optional PowerConnect FM Transmitter. Key features include Pause & Replay for up to 60 minutes of live radio, S-Seek™ alerts for favorite content, and SportsAlert™ for real-time scores.
Read onlineSIRIUS Sportster 5 specifications
| Satellite Frequencies | 2322.293/2330.207 MHz |
|---|---|
| Terrestrial Frequencies | 2326.250MHz |
| Power Requirements | 5.2 Volts, Negative Ground, DC |
| Audio Output | 2.8V (normal); 3.0V (max.) (Peak-to-Peak) |
| Total Harmonic Distortion | <0.3% |
| Signal-to-noise | Greater than 75dB |
| Operation Temperature | -20° to +85° C (-4° to +185° F) |
| Radio Dimensions | 114.2mm x 62.5mm x 16.9mm (4.5” x 2.5” x 0.6”) |
| Radio Weight | 105g (3.7 oz. ) |
| Remote Control Battery | CR2025 |
| Cigarette Lighter Adapter Fuse | 2A Slow Blow |
| Cigarette Lighter Adapter Cable Length | 1.8m (6ft.) |
| Antenna Type | Low Profile Magnetic Antenna |
| Antenna Cable Length | 21’ (single micro-cable) |
| Antenna Connector Type | SMB (right-angle) |
| Audio Out Interface | 1/8” / 3.5mm Stereo Jack |
All SIRIUS Sportster 5 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What kits is the SIRIUS Sportster SP5 compatible with?
It is compatible with the SUPH1 Home Kit, SUPV1 Vehicle Kit, or the SUBX1 Boombox.
Can the Vehicle Dock be powered directly from the vehicle's 12VDC system?
No, it must be powered from the cigarette lighter or a similar power port using the included adapter.
Is it legal to use suction mounts on windshields in California and Minnesota?
State law prohibits drivers in California and Minnesota from using suction mounts on their windshields while operating motor vehicles.
Where can I find the 12 digit SIRIUS ID number?
The ID number is located on the bottom of the box or can be found by selecting Power > Menu > SIRIUS ID.
What is the maximum audio output of the Sportster 5?
The maximum audio output is 1.0 Vrms.
How long can I pause and replay live radio?
You can pause, rewind, and replay up to 60 minutes of live radio.
