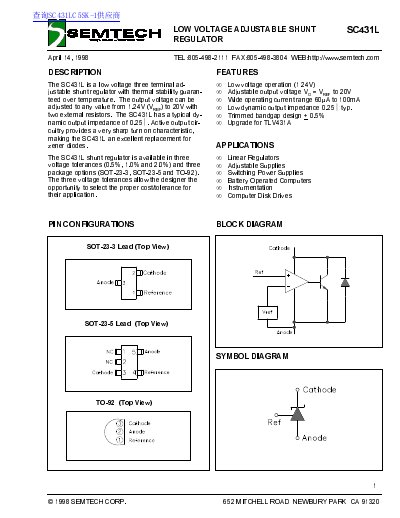

Semtech SC431L Low Voltage Adjustable Shunt Regulator Datasheet
The SC431L is a low voltage three-terminal adjustable shunt regulator designed with thermal stability guaranteed over temperature. The output voltage can be adjusted to any value from 1.24V to 20V using two external resistors. It features a typical dynamic output impedance of 0.25Ω and is available in three voltage tolerances (0.5%, 1.0%, and 2.0%) and three package options (SOT-23-3, SOT-23-5, and TO-92).
Read onlineSemtech SC431 specifications
| Output Voltage Range | 2.5V to 36V |
|---|---|
| Dynamic Output Impedance | 0.25Ω typ. |
| Operating Current Range | 100µA to 150mA |
| Reference Voltage Tolerance | 0.5%, 1.0%, 2.0% |
| Operating Junction Temperature | -40 to +150 °C |
| Package Options | SOT-23-3, SO-8, TO-92 |
All Semtech SC431 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous cathode current?
The maximum continuous cathode current is 100 milliamperes.
From: Semtech SC431L Low Voltage Adjustable Shunt Regulator Datasheet
What is the maximum cathode voltage rating?
The maximum cathode voltage is 20 volts.
From: Semtech SC431L Low Voltage Adjustable Shunt Regulator Datasheet
What is the typical dynamic output impedance of the SC431?
The typical dynamic output impedance is 0.25Ω.
What are the available voltage tolerances for the SC431?
The device is available in 0.5%, 1.0%, and 2.0% voltage tolerances.
