SEMTECH SCBH05FF SCBH10FF SCBH15FF handbook

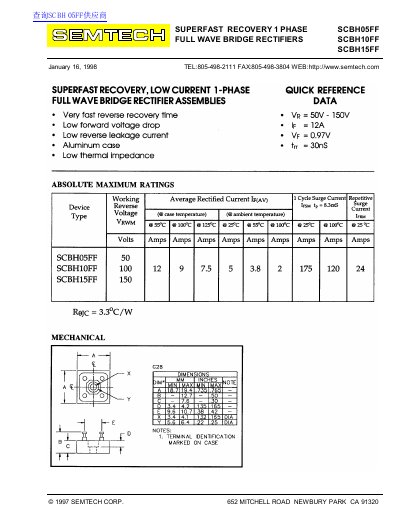

Datasheet 2 pages · 63 KB · EN
This document provides technical data for Semtech SCBH05FF, SCBH10FF, and SCBH15FF superfast recovery 1-phase full wave bridge rectifier assemblies. Key features include very fast reverse recovery time (tr = 30ns), low forward voltage drop (Ve = 0.97V), and low reverse leakage current. The devices are housed in an aluminum case with a thermal impedance (Rejc) of 3.3°C/W.
Read onlineSemtech SCBH05F specifications
| Reverse Recovery Time (tr) | 30ns |
|---|---|
| Forward Voltage Drop (Ve) | 0.97V |
| Thermal Impedance (Rejc) | 3.3°C/W |
All Semtech SCBH05F documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reverse recovery time for these rectifiers?
The reverse recovery time is 30ns.
What is the forward voltage drop?
The forward voltage drop is 0.97V.
What is the reverse recovery time for the SCBH series?
The reverse recovery time is 150 nanoseconds.
What is the thermal resistance from junction to case?
The thermal resistance from junction to case is 3.3°C/W.
