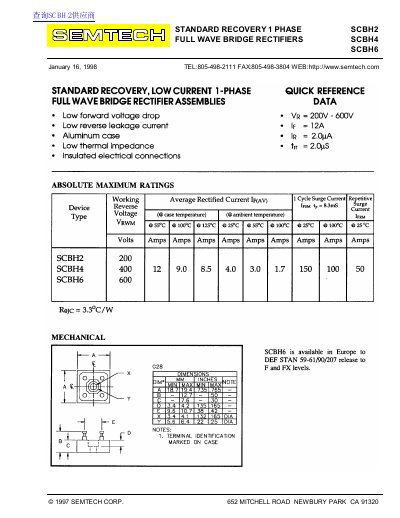

Semtech SCBH2/SCBH4/SCBH6 Full Wave Bridge Rectifiers Datasheet
This document provides technical specifications for the Semtech SCBH2, SCBH4, and SCBH6 series of standard recovery, low current 1-phase full wave bridge rectifier assemblies. The devices feature low forward voltage drop and low reverse leakage current, housed in an aluminum case with insulated electrical connections.
Read onlineSemtech SCBH4 specifications
| Reverse Voltage | 50V - 400V |
|---|---|
| Reverse Leakage Current | 2.0uA |
| Reverse Recovery Time | 150nS |
| Case Material | Aluminum |
| Thermal Resistance Junction-to-Case | 3.3°C/W |
All Semtech SCBH4 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum working average rectified current for the SCBH4 model?
The maximum working average rectified current for the SCBH4 model is 12 Amps.
From: Semtech SCBH2/SCBH4/SCBH6 Full Wave Bridge Rectifiers Datasheet
What is the maximum reverse voltage rating for the SCBH6 model?
The maximum reverse voltage rating for the SCBH6 model is 600 Volts.
From: Semtech SCBH2/SCBH4/SCBH6 Full Wave Bridge Rectifiers Datasheet
What is the reverse recovery time for the SCBH series?
The reverse recovery time is 150 nanoseconds.
What is the thermal resistance from junction to case?
The thermal resistance from junction to case is 3.3°C/W.
