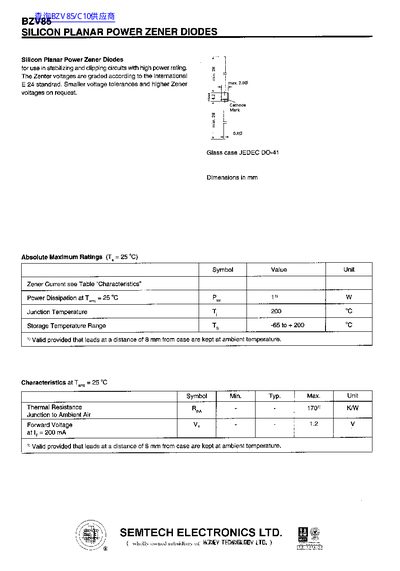

Semtech BZV 85/C Series Silicon Planar Power Zener Diodes Datasheet
Datasheet 4 pages · 281 KB · EN
This document is a technical datasheet for the Semtech BZV 85/C series of Silicon Planar Power Zener Diodes. These components are designed for use in stabilizing and clipping circuits with high power ratings.
The datasheet provides absolute maximum ratings, electrical characteristics at 25°C (including dynamic resistance and reverse leakage current), and a graph showing admissible power dissipation versus ambient temperature.
Semtech BZV85 specifications
| Power Dissipation (Tc = 25 °C) | 1 W |
|---|---|
| Junction Temperature | 200 °C |
| Storage Temperature Range | -65 to + 200 °C |
| Thermal Resistance (Junction to Ambient) | 170 K/W |
| Forward Voltage | 1.2 V |
Source: Semtech BZV 85/C Series Silicon Planar Power Zener Diodes Datasheet
