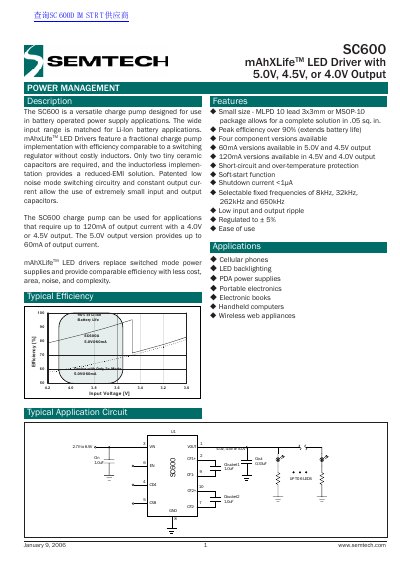

Semtech SC600 Charge Pump Datasheet
The SC600 is a versatile charge pump designed for battery-operated power supply applications, specifically matched for Li-Ion batteries. It utilizes a fractional charge pump implementation that provides efficiency comparable to switching regulators without requiring costly inductors or EMI filters. The device features patented low noise mode switching circuitry and constant output current capabilities.
Read onlineSemtech SC600 specifications
| Output Voltage (Version A) | 5.0V |
|---|---|
| Maximum Output Current (Version B/D) | 120mA |
| Operating Ambient Temperature Range | -40 to +85 °C |
| Supply Voltage Range | 2.5V to 6.5V |
| Typical Efficiency (5.0V, 60mA) | >92% |
| Package Types | MLPD-10 or MSOP-10 |
All Semtech SC600 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output current for the SC600?
The device provides up to 120mA of output current in specific versions (4.5V or 4.0V outputs), while others provide up to 60mA.
Does the SC600 require an inductor?
No, it is an inductorless implementation using only two tiny ceramic capacitors.
What are the available output voltages for the SC600?
The device is available in versions providing 5.0V, 4.5V, or 4.0V outputs.
Does the SC600 require an inductor?
No, it is an inductorless implementation requiring only two tiny ceramic capacitors.
