Key facts
- Brand
- Semtech
- Model
- SCBK2
- Category
- Other Electronics
- Documents
- 3
- Languages
- EN
- Last added
- 2012-08-02
Start here

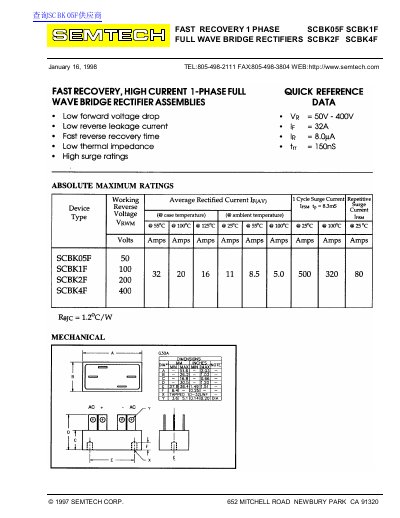

SEMTECH SCBK05F SCBK1F SCBK2F SCBK4F handbook
Datasheet 2 pages · 55 KB · EN
This document is a quick reference datasheet for Semtech SCBK05F, SCBK1F, SCBK2F, and SCBK4F fast recovery, high current 1-phase full wave bridge rectifier assemblies. The devices feature low forward voltage drop, low reverse leakage current, and fast reverse recovery time.
Read onlineSemtech SCBK2 specifications
| Forward Voltage Drop (Vr) | 50V - 600V |
|---|---|
| Reverse Leakage Current (IR) | 8.0mA |
| Thermal Impedance (Rajc) | 1.2°C/w |
All Semtech SCBK2 documents by type
Datasheet 3
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum working reverse voltage for the SCBK4 model?
The absolute maximum rating for the SCBK4 device is 400 Volts.
What are the dimensions of the tapped hole for mounting?
The tapped hole specification is 10-32 UNF.
