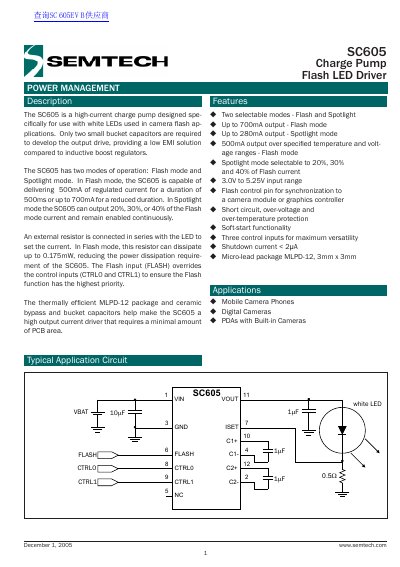

Semtech SC605 Charge Pump Flash LED Driver Datasheet
The SC605 is a 2x charge pump specifically designed to drive high-intensity white LEDs used in camera flash applications. It operates in two selectable modes: Flash mode, which delivers up to 700mA for short durations or 500mA regulated current for up to 500ms, and Spotlight mode, which provides continuous output at 20%, 30%, or 40% of the flash current. The device features a compact MLPD-12 package and requires only two small bucket capacitors.
Read onlineSemtech SC605 specifications
| Output Current (Flash Mode) | Up to 700mA |
|---|---|
| Output Current (Spotlight Mode) | 280mA typical |
| Input Voltage Range | 3.0V to 5.25V |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | MLPD-12 (3mm x 3mm) |
Source: Semtech SC605 Charge Pump Flash LED Driver Datasheet
All Semtech SC605 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the two modes of operation for the SC605?
The device operates in Flash mode and Spotlight mode.
How is the output current set for the SC605?
Output current is regulated by attaching an external resistor in series with the LED to the ISET pin.
What are the two modes of operation for the SC605?
The device operates in Flash mode and Spotlight mode.
How is the output current set?
An external resistor connected in series with the LED sets the current.
