Start here

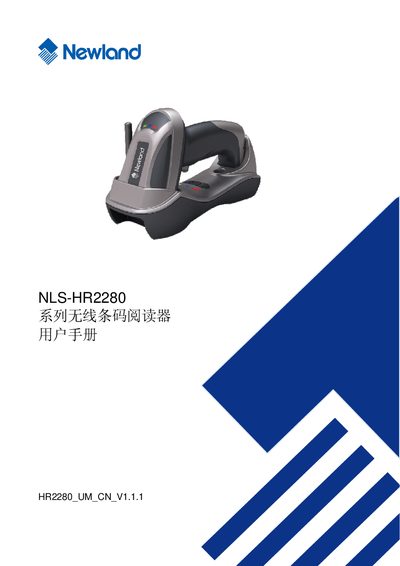

Newland NLS-HR2280 Wireless Barcode Reader User Manual
This manual provides instructions for using the Newland NLS‑HR2280 wireless barcode reader. It describes the hardware layout, connection options such as RS232 and USB, and the supported barcode symbologies.
The document also lists environmental limits, regulatory information and contact details for technical support. This manual is written in Chinese.
Newland NLS-HR2280 specifications
| Dimensions (Handheld) | 17.0 × 7.0 × 8.3 cm |
|---|---|
| Weight (Handheld) | 201 g |
| Battery Capacity | 1300 mAh Li‑ion |
| Battery Charging Time | ≈ 9 hours to >80 % capacity |
| Operating Temperature | 0 °C – 50 °C |
| Storage Temperature | -40 °C – 60 °C |
| Humidity Range | 5 % – 95 % (no condensation) |
| Input Voltage (Handheld) | 4.75 V – 6.5 V DC |
| Standby Time | > 7 days per charge |
| Scanning Angle | 45°, 45°, 360° (left/right, front/back, rotation) |
| Wireless Frequency | 430.5 – 432.0 MHz, 433.05 – 434.79 MHz |
| Maximum Communication Distance | > 100 m (line‑of‑sight) |
Source: Newland NLS-HR2280 series Wireless bar code reader user manual
All Newland NLS-HR2280 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What interface options are available for the NLS‑HR2280?
The reader can be connected via an RS232 interface.
From: Newland NLS-HR2280 Wireless Barcode Reader User Manual
Which barcode symbologies does the NLS‑HR2280 support?
It supports UPC‑A, UPC‑E, EAN‑13, ISBN/ISSN, EAN‑8, Code 39, Code 128, PDF417, QR, Aztec and DataMatrix.
From: Newland NLS-HR2280 Wireless Barcode Reader User Manual
How long does it take to fully charge the battery?
Charging the battery to more than 80 % capacity requires about 9 hours.
From: Newland NLS-HR2280 series Wireless bar code reader user manual
What temperature range can the reader operate in?
The device works from 0 °C up to 50 °C.
From: Newland NLS-HR2280 series Wireless bar code reader user manual
