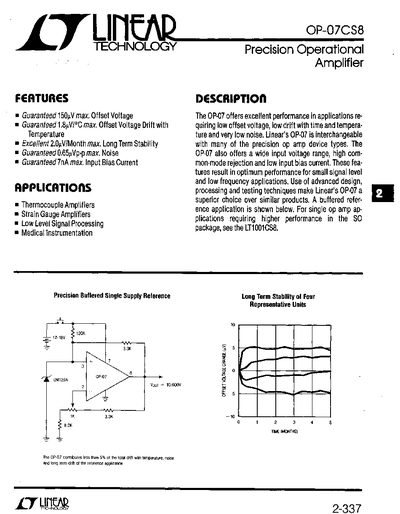

Linear Technology OP-07CS8 Datasheet
The OP-07CS8 is a precision operational amplifier offering low offset voltage, low drift, low noise, and low input bias current. It is suitable for thermocouple amplifiers, strain gauge amplifiers, low‑level signal processing, and medical instrumentation.
The document lists absolute maximum ratings, electrical characteristics, and typical performance parameters such as input offset voltage, bias current, noise, gain bandwidth, slew rate, and power dissipation, along with package and order information.
Linear Technology OP-07CS8 specifications
| Input Offset Voltage (max) | 150 µV |
|---|---|
| Input Offset Voltage (typ) | 250 µV |
| Input Bias Current (typ) | 7 nA |
| Input Noise Voltage (typ, 0.1‑10 Hz) | 0.65 µV‑p‑p |
| Power Dissipation (typ) | 80 mW |
All Linear Technology OP-07CS8 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range?
The OP-07CS8 operates from 0 °C to 70 °C.
Which applications are recommended for the OP-07CS8?
Typical applications include thermocouple amplifiers, strain gauge amplifiers, low‑level signal processing, and medical instrumentation.
What is the operating temperature range of the OP-07CS8?
The device operates from 0 °C to 70 °C.
From: Linear Technology OP-07CS8 Operational Amplifier Datasheet
What is the typical input offset voltage of the OP-07CS8?
Typical input offset voltage is 150 µV.
From: Linear Technology OP-07CS8 Operational Amplifier Datasheet
