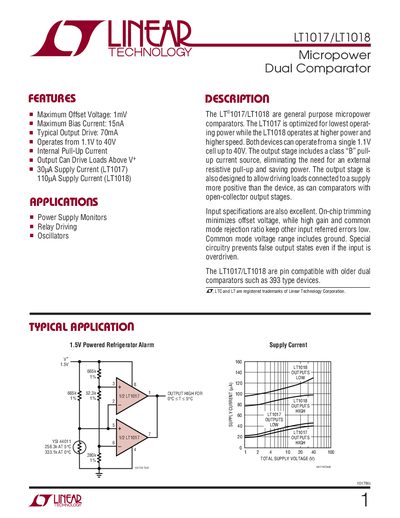

Linear Technology LT1017/LT1018 Micropower Dual Comparator Datasheet
The LT1017 and LT1018 are general‑purpose micropower dual comparators from Linear Technology. They operate from 1.1 V to 40 V, feature a maximum offset voltage of 1 mV, a maximum bias current of 15 nA, and can drive loads up to 70 mA. The devices include an internal pull‑up current source, eliminating the need for an external resistive pull‑up.
The datasheet lists absolute maximum ratings, detailed electrical characteristics such as power‑supply rejection ratio and gain, typical performance curves, and example circuits for relay driving, power‑supply monitoring, and waveform generation. Package dimensions for 8‑lead and 16‑lead SO packages are also provided.
Linear Technology LT1017 specifications
| Maximum Offset Voltage | 1 mV |
|---|---|
| Maximum Bias Current | 15 nA |
| Typical Output Drive | 70 mA |
| Supply Voltage Range | 1.1 V to 40 V |
Source: Linear Technology LT1017/LT1018 Micropower Dual Comparator Datasheet
All Linear Technology LT1017 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the supply voltage range for the LT1017/LT1018?
The devices operate from 1.1 V to 40 V.
From: Linear Technology LT1017/LT1018 Micropower Dual Comparator Datasheet
What is the maximum offset voltage of the LT1017/LT1018?
The maximum offset voltage is 1 mV.
From: Linear Technology LT1017/LT1018 Micropower Dual Comparator Datasheet
What is the maximum supply voltage for the LT1017/LT1018?
The devices are rated for a maximum supply voltage of 40 V.
What is the typical output drive capability?
The comparators can source or sink up to about 70 mA of output current.
