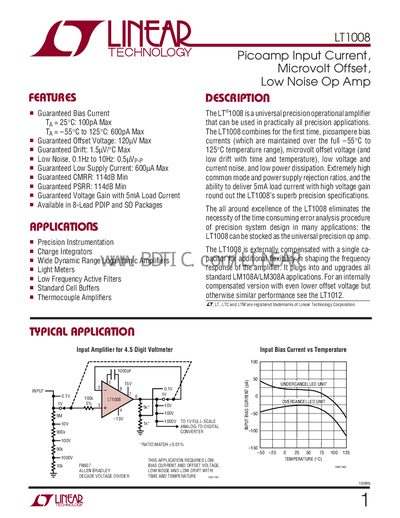

Linear Technology LT1008 Operational Amplifier Datasheet
The LT1008 operational amplifier combines picoampere bias currents, microvolt offset voltage, low noise, and low power dissipation in a single device. It delivers up to 5 mA load current with high voltage gain and excellent common‑mode and power‑supply rejection ratios.
Typical applications include precision instrumentation, charge integrators, logarithmic amplifiers, light meters, low‑frequency active filters, thermocouple amplifiers and standard cell buffers. The device is offered in 8‑lead PDIP and SOIC packages and can operate from +2 V to +18 V supply voltages.
Linear Technology LT1008 specifications
| Input Bias Current (Ta = 25 °C) | 100 pA max |
|---|---|
| Input Offset Voltage | 120 µV max |
| Supply Current (Typical) | 600 µA max |
| CMRR | 114 dB min |
| PSRR | 114 dB min |
| Noise Voltage (0.1 Hz‑10 Hz) | 0.5 µV p‑p |
Source: Linear Technology LT1008 Operational Amplifier Datasheet
All Linear Technology LT1008 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input bias current of the LT1008 at room temperature?
The LT1008 has a maximum input bias current of 100 pA at 25 °C.
From: Linear Technology LT1008 Operational Amplifier Datasheet
What supply voltage range can the LT1008 operate over?
The device can be powered from +2 V up to +18 V, and operation down to +1.2 V is possible with two Ni‑Cd batteries.
From: Linear Technology LT1008 Operational Amplifier Datasheet
What is the input bias current range of the LT1008?
The LT1008 has an input bias current of 30 pA minimum, about 100 pA typical, and up to 150 pA maximum.
What supply voltage range does the LT1008 support?
The LT1008 operates from +2 V to +18 V, and can work down to +1.2 V in special low‑voltage configurations.
