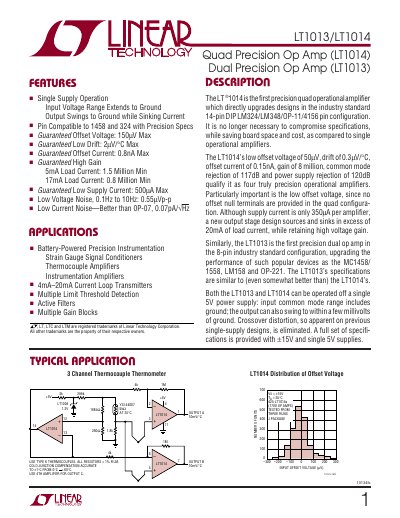

Linear Technology LT1013/LT1014 Quad/Dual Precision Op Amp Datasheet
The LT1014 is a quad precision op‑amp and the LT1013 a dual precision op‑amp that replace legacy 14‑pin and 8‑pin devices such as the LM324, LM348, OP‑11 and MC1458. They offer very low offset voltage, low drift, high gain, high common‑mode rejection and can operate from a single 5 V supply while maintaining output swing close to ground.
The datasheet provides detailed electrical characteristics, package dimensions, performance graphs and typical application circuits. Key specifications include offset voltage as low as 50 µV, gain of 8 million, supply current of 350 µA per amplifier and load‑current capability exceeding 20 mA. The devices are suited for precision instrumentation, sensor conditioning, and comparator functions.
Linear Technology LT1013 specifications
| Input Offset Voltage (LT1014) | 50 µV |
|---|---|
| Gain | 8 million |
| Supply Current per Amplifier | 350 µA |
| Maximum Load Current | >20 mA |
| Input Common‑Mode Range | Includes ground |
| Power Supply Rejection Ratio | 120 dB |
Source: Linear Technology LT1013/LT1014 Quad/Dual Precision Op Amp Datasheet
All Linear Technology LT1013 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical input offset voltage of the LT1014?
The LT1014 typically has an input offset voltage of 50 µV.
From: Linear Technology LT1013/LT1014 Quad/Dual Precision Op Amp Datasheet
Can the LT1013/LT1014 operate from a single 5 V supply?
Yes, both devices can run from a single 5 V supply, with input common‑mode range to ground and output swing within a few millivolts of ground.
From: Linear Technology LT1013/LT1014 Quad/Dual Precision Op Amp Datasheet
What supply voltage range can the LT1013/LT1014 operate from?
They are fully specified for single‑supply operation with the negative supply at 0 V; the input common‑mode range includes ground and the output can swing within a few millivolts of ground.
From: Linear Technology LT1013/LT1014 Operational Amplifier Datasheet
What is the maximum input offset voltage for these amplifiers?
The LT1013 guarantees a maximum offset voltage of 150 µV, while the LT1014 typical offset voltage is 180 µV.
From: Linear Technology LT1013/LT1014 Operational Amplifier Datasheet
