Key facts
Start here

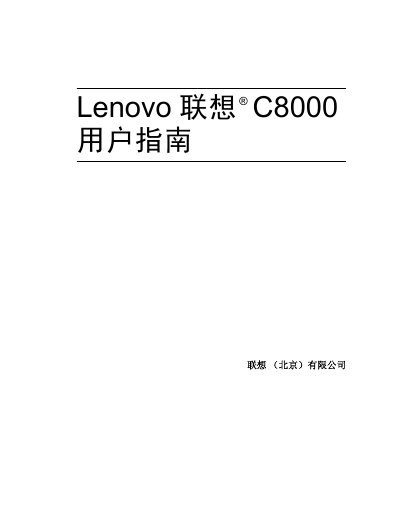

Lenovo C8000 Printer User Manual
This manual explains how to install the C8000 printer, configure drivers, and meet system requirements. It includes safety warnings, environmental guidelines, and instructions for connecting the printer to a computer or network.
The guide covers paper handling, consumable replacement, routine maintenance, and detailed troubleshooting steps. Technical specifications such as power requirements, operating temperature, and humidity limits are listed in the final section. This manual is written in Chinese.
Lenovo C8000 specifications
| Print speed (letter/A4) | 16 ppm black / 4 ppm color |
|---|---|
| Resolution | 600 × 600 dpi, 1200 × 600 dpi |
| SDRAM | 32 MB |
| Standard paper tray capacity | 200 sheets |
| Duplex option | Optional |
| Interface options | IEEE‑1284 parallel port, USB |
All Lenovo C8000 documents by type
Disassembly, diagnostics and part numbers, for repair.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
How much does the Lenovo C8000 printer weigh?
The printer with consumables installed weighs about 28 kg (62 lb).
How many sheets can the main paper tray hold?
The standard paper tray can hold up to 200 sheets of 80 g/m² paper.
What are the recommended operating temperature and humidity for the C8000 printer?
The printer should be used in an environment with a temperature of 10 °C to 35 °C and a relative humidity of 15 % to 85 % (non‑condensing).
What voltage and frequency should be used for the C8000 printer?
The printer requires a rated voltage of 220‑240 V and a frequency of 50/60 Hz.
What safety steps must be taken before servicing the Lenovo C8000 printer?
Always disconnect the power cord before starting any service steps, avoid wet hands, and use only specified replacement parts.
Which components are marked as high‑voltage parts?
Parts marked with the left‑side symbol are high‑voltage and must be handled only after power is removed.
