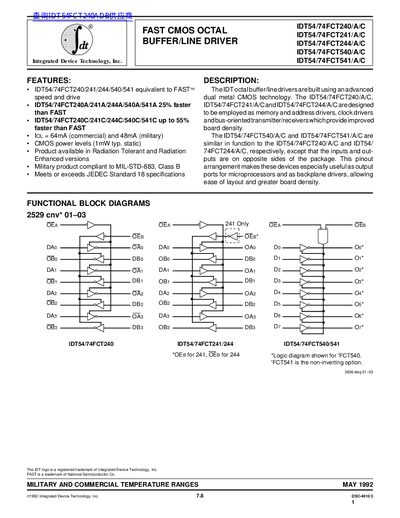

Integrated Device Technology Inc IDT54/74FCT240/A/C IDT54/74FCT241/A/C IDT54/74FCT244/A/C IDT54/74FCT540/A/C IDT54/74FCT541/A/C Data Sheet
The FAST CMOS Octal Buffer/Line Driver family from Integrated Device Technology is designed for memory, address, clock, and bus drivers, offering low power CMOS operation and options for radiation‑tolerant or enhanced versions. Variants A and C provide up to 55% faster performance than the original FAST devices, with commercial IOL of 64 mA and military IOL of 48 mA.
The datasheet details pin configurations for DIP, SOIC, and CERPACK packages, absolute maximum ratings, electrical characteristics, power‑supply behavior, and switching performance. Test circuits and waveform examples illustrate enable/disable timing and propagation delays. Ordering information lists part numbers for commercial and MIL‑STD‑883 Class B versions.
Integrated Device Technology IDT74FCT541 specifications
| Commercial Operating Temperature | 0 °C to +70 °C |
|---|---|
| Military Operating Temperature | -55 °C to +125 °C |
| Output Current (IOL) Commercial | 64 mA |
All Integrated Device Technology IDT74FCT541 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
- Integrated Device Technology Inc IDT54/74FCT240/A/C IDT54/74FCT241/A/C IDT54/74FCT244/A/C IDT54/74FCT540/A/C IDT54/74FCT541/A/C Data Sheet 8 p
- Integrated Device Technology IDT54/74FCT240T/AT/CT/DT - 2240T/AT/CT IDT54/74FCT244T/AT/CT/DT - 2244T/AT/CT IDT54/74FCT540T/AT/CT IDT54/74FCT541/2541T/AT/C Manual 9 p
Questions answered in these manuals
What is the operating temperature range for the commercial version?
The commercial version operates from 0 °C to +70 °C.
What is the maximum output current for the commercial devices?
The commercial devices can source up to 64 mA of output current.
What is the maximum input leakage current for the IDT54/74FCT devices?
The maximum input and output leakage current is less than 1 µA.
Which package types are available for the IDT54/74FCT series?
The devices are offered in DIP, SOIC, SSOP, QSOP, CERPACK and LCC packages.
