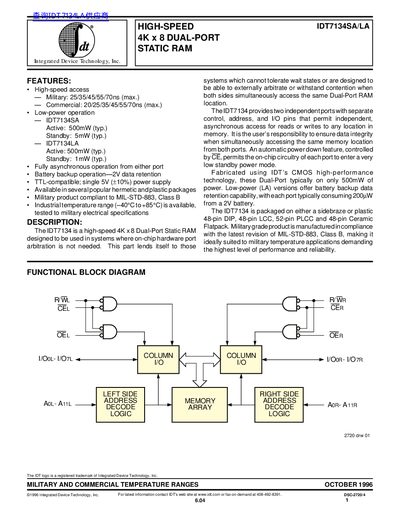

Integrated Device Technology IDT7134SA/LA Data Sheet
The IDT7134SA/LA is a high-speed 4K x 8 Dual-Port Static RAM designed for systems where on-chip hardware port arbitration is not required. It features two independent ports with separate control, address, and I/O pins that permit independent, asynchronous access for reads or writes to any location in memory. The device is fabricated using IDT's CMOS high-performance technology and is available in both standard (SA) and low-power (LA) versions.
Read onlineIntegrated Device Technology IDT7134SA specifications
| Supply Voltage | 4.5V to 5.5V |
|---|---|
| Operating Temperature (Commercial) | 0°C to +70°C |
| Max Active Power (SA) | 500mW |
| Max Active Power (LA) | 500mW |
| Max Standby Power (LA) | 1mW |
Source: Integrated Device Technology IDT7134SA/LA Data Sheet
All Integrated Device Technology IDT7134SA documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between the SA and LA versions?
The LA version offers battery backup data retention capability, whereas the SA version does not.
Is this device compatible with military specifications?
Yes, the military grade product is manufactured in compliance with MIL-STD-883, Class B.
What is the difference between IDT7134SA and IDT7134LA?
The SA version is standard power, while the LA version offers low-power operation with battery backup data retention capability.
From: Integrated Device Technology IDT7134SA/LA 4K x 8 Dual-Port Static RAM Datasheet
Is this RAM suitable for military applications?
Yes, it is a military product compliant to MIL-STD-883, Class B.
From: Integrated Device Technology IDT7134SA/LA 4K x 8 Dual-Port Static RAM Datasheet
What is the typical active power consumption of the IDT7134SA?
The IDT7134SA consumes about 700 mW of power in active mode (typical).
Which package types are available for the IDT7134?
It is offered in 48‑pin DIP, 48‑pin LCC, 48‑pin Flatpack, and 52‑pin PLCC packages.
