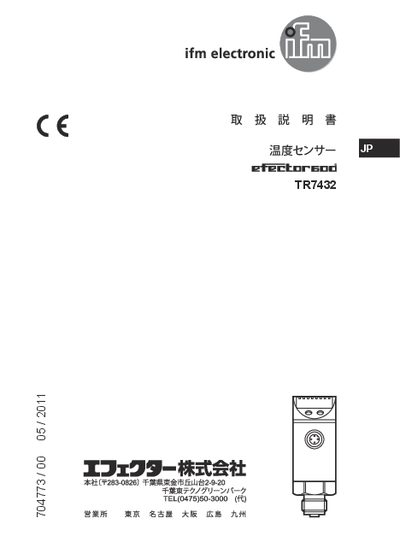

ifm TR7432 Temperature Sensor User Manual
This manual explains how to install and connect the ifm TR7432 temperature sensor, covering safety precautions, supported sensor types, and wiring diagrams for 2‑, 3‑, and 4‑wire configurations. It also describes the sensor’s display, operation buttons, and menu structure for setting parameters such as set‑points, hysteresis, and switching functions.
Additional sections cover the sensor’s functional features, including two configurable switching outputs (OUT1 and OUT2), IO‑Link communication, and factory default settings. Technical specifications, measurement range, and recommended accessories for mounting are provided at the end of the document. This manual is written in Japanese.
ifm TR7432 specifications
| Supported sensor types | TM, TS, TT, RTD (Pt100 or Pt1000) |
|---|---|
| OUT1 output | Switching output for system temperature |
| OUT2 output | Switching output for system temperature |
| Measurement range | -39.8 °C to 3000 °C |
All ifm TR7432 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which temperature sensor types can be connected to the TR7432?
The TR7432 can be connected to temperature sensors of type TM, TS, TT, or resistance temperature detectors (RTD) such as Pt100 or Pt1000.
What supply voltage is required for the sensor?
The sensor operates on a supply voltage of 18 V to 32 V DC.
