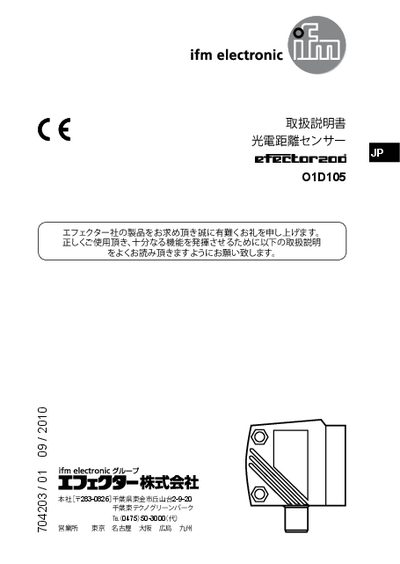

IFM O1D106 Manual
This manual explains how to install and operate the ifm O1D105 photoelectric distance sensor. It covers safety precautions, wiring diagrams, menu navigation, and parameter configuration for hysteresis, wind, and analog output functions.
The document also includes maintenance instructions, dimension drawings, and factory default settings, helping users achieve reliable measurement performance up to 10 m. This manual is written in Japanese.
ifm O1D106 specifications
| Measuring range | 1–75 m |
|---|---|
| Laser class | Class 2 |
| Laser power | 4.1 mW |
| Wavelength | 650 nm |
| Pulse width | 1.3 ns |
| Number of outputs | 2 |
| Display type | 4‑digit alphanumeric |
All ifm O1D106 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the measuring range of the O1D106 sensor?
The sensor measures distances from 1 m up to 75 m on the reflector.
What safety warnings are given for the laser in the O1D106?
It is a Class 2 laser with a maximum power of 4.1 mW at 650 nm wavelength; do not stare into the beam and avoid exposure.
What is the detection range of the O1D105 sensor?
The sensor can detect distances from 0.2 m up to 10 m.
From: IFM O1D106 Manual
How many output channels does the sensor provide?
It provides two output channels, OUT1 and OUT2.
From: IFM O1D106 Manual
