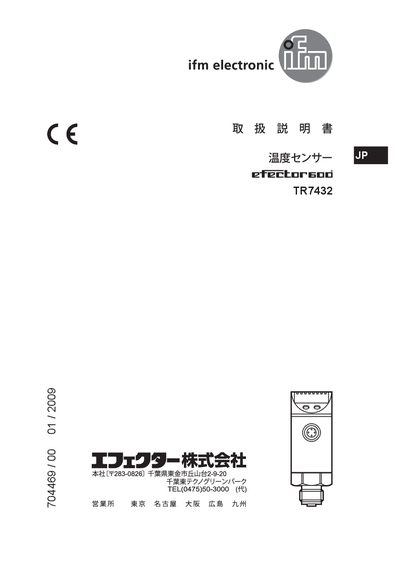

This manual is the instruction manual for temperature sensor TR7432. It introduces the product's features and characteristics, installation methods, connection methods, display operation, parameter settings, operating methods, etc.
This manual covers the installation and wiring of the TR7432704469 2‑channel temperature sensor, including connection of OUT1/OUT2, IO‑Link setup, and LED indicator functions. Safety information, environmental ratings and compliance data are also included.
Operational guidance explains the sensor's mode selection, set points, and how to read temperature values. Technical data such as temperature range, supply voltage, current consumption, and mechanical dimensions are listed for system integration. This manual is written in Japanese.
| Supply voltage | 18 V to 32 V DC |
|---|---|
| EMC compliance | EN 61000‑4‑2, EN 61000‑4‑3, EN 61000‑4‑4, EN 61000‑4‑5, EN 61000‑4‑6 |
The sensor operates on a supply voltage of 18 V to 32 V DC.
