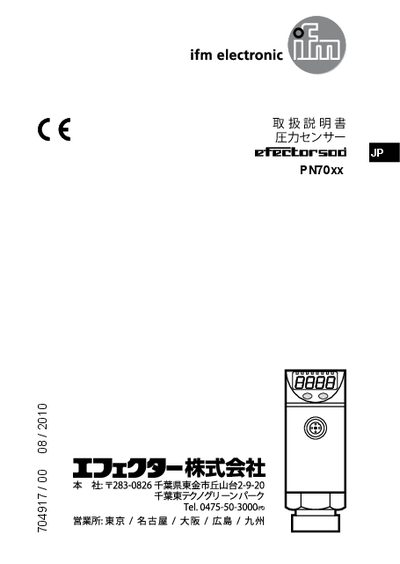

ifm PN70xx Pressure Sensor User Manual
This manual covers the safe use of the ifm PN70xx pressure sensor, including safety precautions, installation steps, wiring instructions, and how to operate the device. It explains the sensor's features, switching functions, diagnostic outputs, and how to configure parameters such as set points and hysteresis.
The document also lists the measurement ranges for each model variant, details the factory default settings, and provides technical specifications. Users are instructed on proper handling, connector wiring color codes, and the importance of not exceeding allowable pressure limits. This manual is written in Japanese.
ifm PN70XX specifications
| PN7000 measurement range | 0–40 MPa |
|---|---|
| PN7003 measurement range | 0–2.5 MPa |
| Maximum allowable pressure for gas measurement | 2.5 MPa |
All ifm PN70XX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What pressure should not be exceeded when measuring gas with the PN70xx sensor?
Do not apply a pressure higher than 2.5 MPa when measuring gas.
What is the maximum pressure that can be applied when measuring gas?
Do not apply a pressure higher than 2.5 MPa to the sensor when measuring gas pressure.
From: ifm PN70xx User Manual
How should the sensor be wired and installed?
All wiring and installation must be performed with the power off, and connections should be made carefully without using tools to tighten the connector pins.
From: ifm PN70xx User Manual
What is the maximum pressure allowed for gas applications?
The maximum pressure for gas medium is 25 bar.
Who must perform the electrical wiring of the sensor?
A qualified electrician must perform the electrical connection.
What is the maximum pressure allowed for gas media?
The sensor may be used with gas media up to a maximum pressure of 25 bar.
