Key facts
- Brand
- Endress+Hauser
- Model
- 53P
- Category
- Other
- Industry
- Industrial
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-02-24
Start here

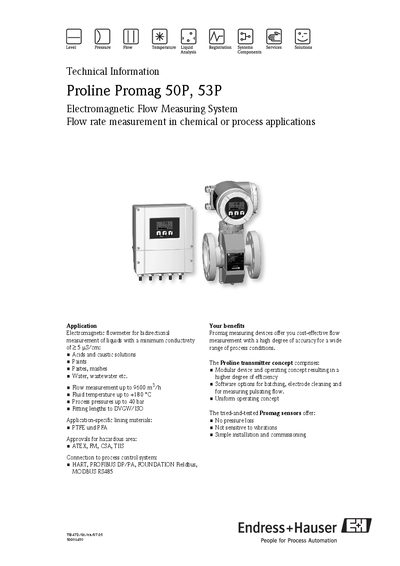

Endress+Hauser Proline Promag 50P/53P User Manual
The Proline Promag 50P and 53P are electromagnetic flow measuring systems designed for chemical and process applications. The manual describes the measuring principle, system design, and the two available versions – a compact unit where transmitter and sensor are combined, and a remote version with separate components.
It provides detailed information on inputs, outputs, power supply, and communication interfaces such as HART, PROFIBUS DP/PA, MODBUS RS485, and FOUNDATION Fieldbus, as well as terminal assignments, installation guidelines, and technical specifications.
Endress+Hauser 53P specifications
| Maximum fluid temperature | +180 °C |
|---|---|
| Maximum process pressure | 40 bar |
| Maximum flow measurement | 9600 m³/h |
| Velocity measuring range | 0.01 … 10 m/s |
| Status input voltage | 3 … 30 V DC (5 kΩ) |
| Power supply voltage (AC) | 85 … 200 V AC |
| PROFIBUS PA current consumption | 11 mA |
| FOUNDATION Fieldbus current consumption | 12 mA |
| PROFIBUS DP data rate | 9.6 kBaud … 12 MBaud |
| Supported MODBUS baud rates | 1200 – 115200 Baud |
All Endress+Hauser 53P documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Which communication protocols are supported by the Proline Promag 50P/53P?
The device supports HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, and MODBUS RS485.
What is the maximum process temperature the flowmeter can handle?
It can operate at fluid temperatures up to +180 °C.
How many contact points can be used with the system?
Up to four contact points can be used, and they can serve as limit switches or temperature inputs.
From: Endress+Hauser SCCM223/253 pH and Conductivity Measurement System User Manual
Can the system display pH and conductivity values at the same time?
Yes, the system can simultaneously show both pH (or conductivity) values and temperature.
From: Endress+Hauser SCCM223/253 pH and Conductivity Measurement System User Manual
