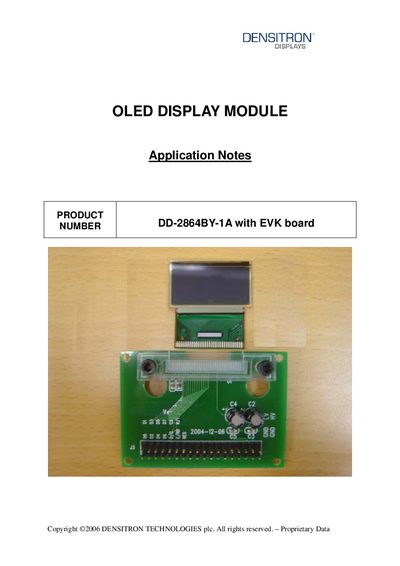

Densitron DD-2864BY-1A OLED Display Module Application Notes
This document provides technical information for the Densitron DD-2864BY-1A OLED display module used together with the EVK evaluation board. It includes the EVK schematic, pin‑out definitions, timing characteristics of the 8080‑parallel interface, and example initialization code.
Key sections are the EVK schematic, a detailed symbol definition table, timing characteristic tables, connection diagrams between the OLED and EVK, and a recommended initial code example for MCU integration.
Densitron DD-2864BY-1A specifications
| Supply voltage range | 2.4 V to 3.5 V |
|---|---|
| Operating temperature range | -40 °C to 85 °C |
| Clock cycle time | 300 ns |
Source: Densitron DD-2864BY-1A OLED Display Module Application Notes
All Densitron DD-2864BY-1A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the supply voltage range for the DD-2864BY-1A?
The DD-2864BY-1A operates from 2.4 V to 3.5 V supply voltage.
From: Densitron DD-2864BY-1A OLED Display Module Application Notes
Which interface does the EVK board use to communicate with the OLED module?
The EVK board uses an 8080‑parallel interface to connect to the OLED module.
From: Densitron DD-2864BY-1A OLED Display Module Application Notes
What is the maximum supply voltage for the DD-2864BY-1A module?
The module can be powered with a Vpp supply voltage ranging from –0.3 V to 4 V.
From: Densitron DD-2864BY-1A OLED Display Module Product Specification
How should the OLED display be cleaned?
Wipe the surface lightly with a soft cloth soaked in isopropyl alcohol, ethyl alcohol or trichlorotrifluoromethane, avoiding dry or hard materials and aromatic or ketonic solvents.
From: Densitron DD-2864BY-1A OLED Display Module Product Specification
