Start here

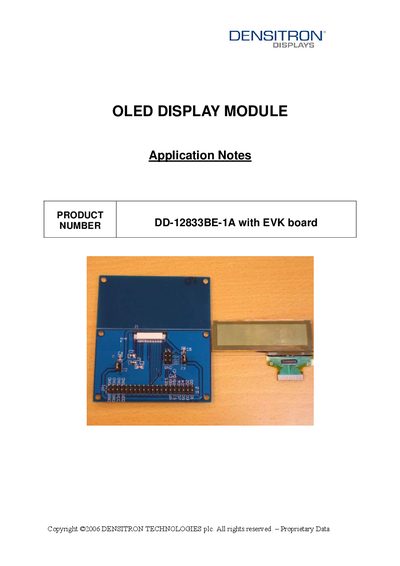

Densitron DD-12833BE-1A OLED Display Module Proprietary Data Manual
The DD-12833BE-1A is an OLED display module from Densitron Technologies. It is intended for integration with microcontroller‑based systems via various interfaces such as I²C, serial, and parallel modes.
The manual includes a full EVK schematic, symbol definitions, detailed timing characteristics for PC, serial peripheral, and parallel interfaces, power‑on sequence, usage instructions, and recommended initialization code. It also lists voltage pins (HV, LV, GND) and provides timing tables for signal setup and hold requirements.
Densitron DD-12833BE-1A specifications
| HV pin | most positive supply voltage |
|---|---|
| LV pin | logic supply voltage |
| GND pin | ground |
| PC Interface Tscl_cycle | 2.5 ns |
| SPI Interface Tsclk_cycle | 250 ns |
Source: Densitron DD-12833BE-1A OLED Display Module Proprietary Data Manual
All Densitron DD-12833BE-1A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How is the reset pin used?
The RES# pin is the reset signal input; pulling it low initializes the chip.
From: Densitron DD-12833BE-1A OLED Display Module Proprietary Data Manual
How do I initialize the DD-12833BE-1A display?
Use the provided initialization routine, starting with the function void Initial_ic(void) that sets control pins and writes a series of command bytes.
From: Densitron DD-12833BE-1A OLED Display Module Proprietary Data Manual
What is the operating temperature range of the DD-12833BE-1A module?
The module operates from –20 °C to 70 °C.
From: Densitron DD-12833BE-1A OLED Display Module Specification Manual
Which driver IC is used in the DD-12833BE-1A OLED display?
The driver IC is the STV8102.
From: Densitron DD-12833BE-1A OLED Display Module Specification Manual
