Start here

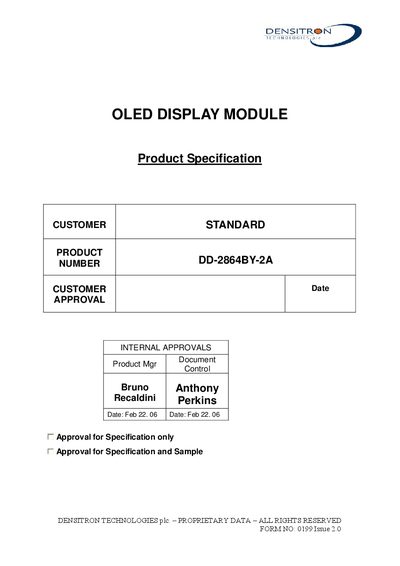

Densitron DD-2864BY-2A OLED Display Module Product Specification
The DD-2864BY-2A is a 128 × 64‑dot passive‑matrix OLED display module with a glass package measuring 30 × 20.16 × 1.8 mm. It uses an SSD1303 driver IC, operates from –20 °C to +70 °C, and requires a supply voltage of 2.6‑3.5 V for logic and 8‑10 V for the driver. The module weighs 2 g and offers a viewing area of 25.02 × 13.86 mm.
The specification includes absolute maximum ratings, pin assignments, timing characteristics, and reliability test results. Handling precautions advise static‑discharge protection, careful cleaning with isopropyl alcohol, and storage in a dark, temperature‑controlled environment to ensure a lifetime of over 10 000 hours.
Densitron DD-2864BY-2A specifications
| Display Format | 128 x 64 Dots |
|---|---|
| Overall Dimensions (Glass) | 30 x 20.16 x 1.8 mm |
| Driver IC | SSD1303 (COF) |
| Supply Voltage (Vpp) – Absolute Max | -0.3 to 4 V |
| Operating Temperature | -20 °C to +70 °C |
| Weight | 2.0 g |
| Lifetime (Typical) | >10,000 hours |
Source: Densitron DD-2864BY-2A OLED Display Module Product Specification
All Densitron DD-2864BY-2A documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum supply voltage for the DD-2864BY-2A module?
The absolute maximum supply voltage (Vpp) is –0.3 V to 4 V.
From: Densitron DD-2864BY-2A OLED Display Module Product Specification
What temperature range can the module operate in?
The module operates from –20 °C to +70 °C.
From: Densitron DD-2864BY-2A OLED Display Module Product Specification
What supply voltage range does the DD-2864BY-2A require?
The module operates with a VDD supply between 2.4 V and 3.5 V.
From: Densitron DD-2864BY-2A OLED Display Module Application Note
Which pins are used for the 8080 parallel interface on the EVK board?
DO0‑DO7 are the 8‑bit bi‑directional data bus, and the control pins are RD#, WR#, D/C#, RES#, CS#, VCC, VDD, VSS, VCOMH, and NC.
From: Densitron DD-2864BY-2A OLED Display Module Application Note
