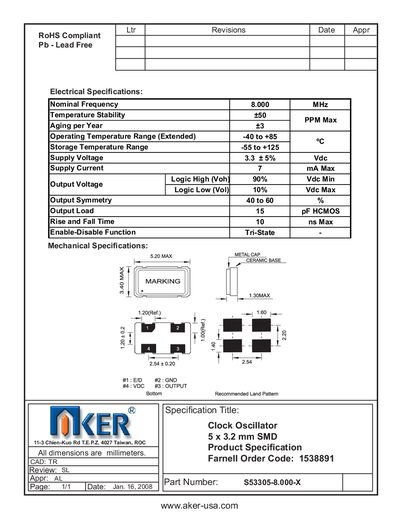

S53305-8.000-X is a clock oscillator from Aker, with a frequency of 8.000 MHz, working voltage of 3.3 ± 5% Vdc, supply current of 7 mA, output voltage of logic high (Voh) 90% Vdc Min Logic Low (Vol) 10% Vdc Max Output Symmetry 40 to 60 % Output Load 15 pF HCMOS Rise and Fall Time 10 ns Max Enable-Disable Function Tri-State.
The S53305-8.000-X is an 8 MHz surface‑mount clock oscillator packaged in a 5 mm × 3.2 mm SMD case. It offers a nominal frequency of 8 MHz with a temperature stability of 50 ppm and a supply voltage of 3.3 V.
The device complies with RoHS and is lead‑free. It operates from –40 °C to +85 °C (extended range) and can be stored from –55 °C to +125 °C. Electrical characteristics include a supply current of 7 mA, logic high output at 90 % Vde, and a rise/fall time of 10 ns.
| Nominal Frequency | 8.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 |
| Supply Voltage | 3.3 V (45% Vde) |
| Supply Current | 7 mA Max |
| Output Voltage Logic High (Voh) | 90% Vde Min |
| Output Voltage Logic Low (Vol) | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Package Size | 5 x 3.2 mm SMD |
The nominal frequency is 8.000 MHz.
It requires a supply voltage of 3.3 V (45% Vde).
The extended operating temperature range is –40 °C to +85 °C.
The package measures 5 mm by 3.2 mm (SMD).
