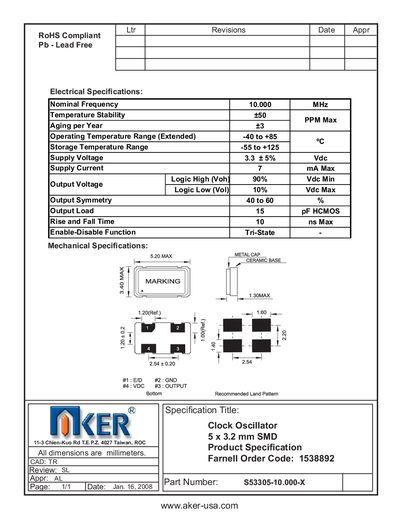

S53305-10.000-X Clock Oscillator 5 x 3.2 mm SMD Product Specifi cation is a 10.000 MHz frequency clock oscillator manufactured by AKER.
The AKER 53305-10.000-X is a 5 × 3.2 mm SMD clock oscillator delivering a nominal 10.000 MHz frequency. It offers 50 ppm temperature stability, a supply voltage of 3.3 V, and a low supply current of 7 mA. Electrical characteristics include logic high/low levels, 15 pF HCMOS load capability, and a 10 ns maximum rise/fall time.
Mechanically, the device features a metal cap up to 5.20 mm high on a ceramic base and uses a 2.54 mm pitch land pattern. The oscillator is RoHS compliant and lead‑free, suitable for operation from –40 °C to +85 °C (extended) and storage from –55 °C to +125 °C.
| Nominal Frequency | 10.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Supply Voltage | 3.3 V (45% Vde) |
| Supply Current | 7 mA Max |
| Logic High Output Voltage (Voh) | 90% Vde Min |
| Logic Low Output Voltage (Vol) | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Height (Metal Cap) | 5.20 mm Max |
| Pin Pitch | 2.54 mm |
