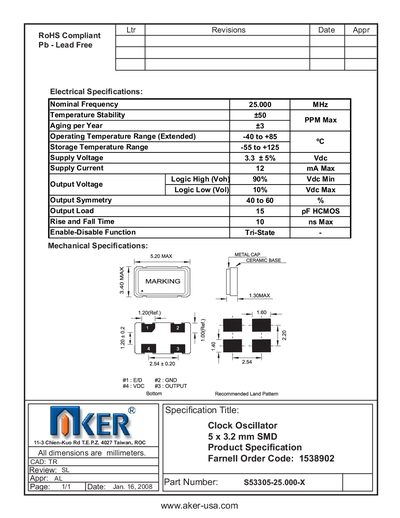

This document is about S53305-25.000-X clock oscillator product specification
The S53305-25.000-X is a 5 × 3.2 mm SMD clock oscillator designed for precise timing applications. It operates from a 3.3 V supply and offers a nominal frequency of 25 MHz with tight temperature stability.
Key specifications include a temperature stability of 50 ppm, aging of +3 ppm/year, an extended operating temperature range of –40 °C to +85 °C, and a supply current of 12 mA max. The device features a tri‑state enable/disable function, 15 pF HCMOS load capability, and a recommended 2.54 mm land‑pattern pitch.
| Nominal Frequency | 25.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Storage Temperature Range | -55 to +125 °C |
| Supply Voltage | 3.3 V (45% Vde) |
| Supply Current | 12 mA Max |
| Logic High Output Voltage (Voh) | 90% Vde Min |
| Logic Low Output Voltage (Vol) | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 10 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Size | 5 × 3.2 mm SMD |
| Maximum Metal Cap Height | 5.20 mm |
| Recommended Land Pattern Pitch | 2.54 mm |
The nominal frequency is 25.000 MHz.
It requires a 3.3 V supply (45% Vde).
The extended operating temperature range is –40 °C to +85 °C.
