S23305-40.000-X is a clock oscillator from Aker. The frequency is 40.000MHz, the operating voltage is 3.3V, and the current is 20mA.

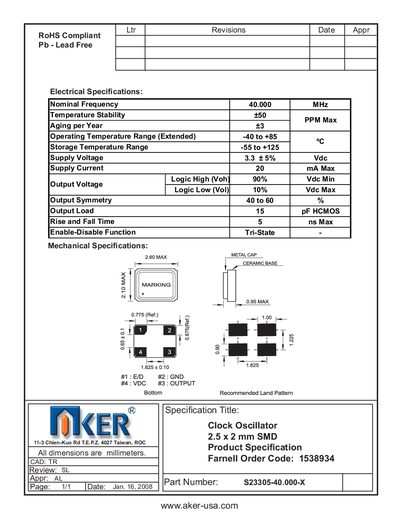

The S23305-40.000-X is a 40 MHz crystal clock oscillator supplied in a 2.5 × 2 mm SMD package. It offers a temperature stability of 50 ppm and an aging rate of +3 ppm per year.
The device is RoHS compliant, operates from a 3.3 V supply with a maximum current of 20 mA, and features a tri‑state enable‑disable function. Ordering information and the part number ($23305-40.000-X) are listed for reference.
| Nominal Frequency | 40.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Supply Voltage | 3.3 V (45% Vde) |
| Supply Current | 20 mA Max |
| Logic High Output Voltage | 90% Vde Min |
| Logic Low Output Voltage | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 5 ns Max |
| Enable‑Disable Function | Tri‑State |
| Package Size | 2.5 × 2 mm SMD |
| RoHS Compliance | Yes |
It operates at a nominal frequency of 40.000 MHz.
The extended operating temperature range is –40 °C to +85 °C.
It requires a 3.3 V supply (45 % Vde).
Yes, the oscillator is RoHS compliant.
