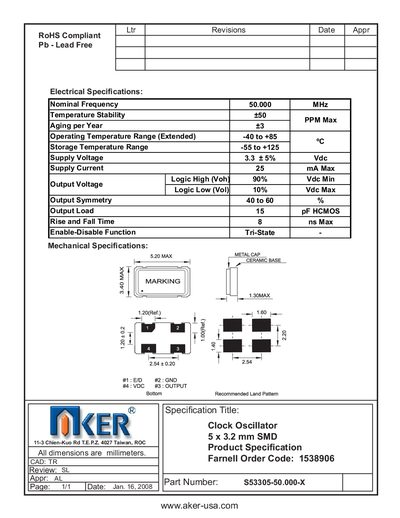

S53305-50.000-X is a 50.000MHz clock oscillator produced by Aker, working voltage is 3.3V, working temperature range is -40℃ to +85℃.
The S53305-50.000-X is a 5 × 3.2 mm SMD clock oscillator designed for precise timing applications. It operates at a nominal frequency of 50.000 MHz and meets RoHS compliance with lead‑free construction.
Key specifications include a supply voltage of 3.3 V, 25 mA maximum supply current, temperature stability of 50 ppm, and an extended operating temperature range of –40 °C to +85 °C. Mechanical details list a maximum metal cap height of 5.20 mm and a recommended 2.54 mm land pattern.
| Nominal Frequency | 50.000 MHz |
|---|---|
| Aging per Year | +3 |
| Operating Temperature Range (Extended) | -40 to +85 °C |
| Supply Voltage | 3.3 V (45% Vde) |
| Supply Current | 25 mA Max |
| Logic High Output Voltage (Voh) | 90% Vde Min |
| Logic Low Output Voltage (Vol) | 10% Vde Max |
| Output Symmetry | 40 to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 8 ns Max |
| Package Size | 5 × 3.2 mm SMD |
| Maximum Metal Cap Height | 5.20 mm |
The oscillator operates at a nominal frequency of 50.000 MHz.
It can operate from –40 °C to +85 °C (extended range).
The device requires a 3.3 V supply (45% Vde).
The part is a 5 × 3.2 mm SMD package.
