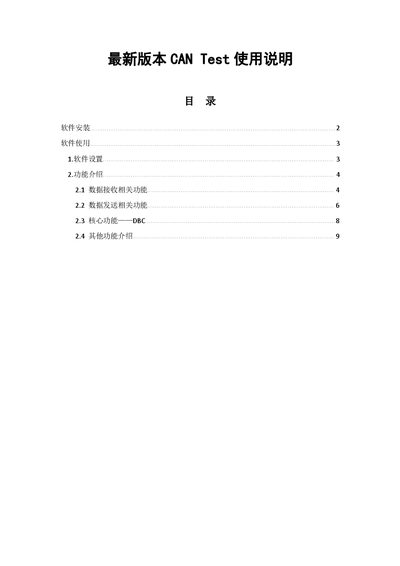

The ZLG CANTest V2.XX software user manual explains installation, configuration, and how to use data receive, send, DBC parsing and other functions.
This manual provides step‑by‑step instructions for installing the CANTest software, including copying the controlcan.dll file from the ZLG software folder on the CD to the program’s installation directory. It also covers device selection, channel configuration and language settings.
The guide details the main features of the software such as data reception with filter settings, data transmission in basic and advanced modes, real‑time saving of logs to TXT or CSV files, and core DBC support for automotive protocols. Additional functions include device information, error frame display, and customizable frame ID display formats. This manual is written in Chinese.
| Supported hardware | USBCAN1/2 devices |
|---|---|
| Maximum send list entries | 100 messages |
| Save file formats | .txt, .CSV |
| Supported DBC formats | Intel and Motorola |
Run the CANTest_Setup_V2.XX.exe from the CD and copy the controlcan.dll from the ZLG software folder on the CD into the CANTest installation directory.
Open the filter settings, choose a filter mode (e.g., standard frame single filter), enter the desired ID and confirm to receive only frames with that ID.
Use the (real‑time) save function to export the received data list to a text (.txt) or CSV (.CSV) file on the computer.
