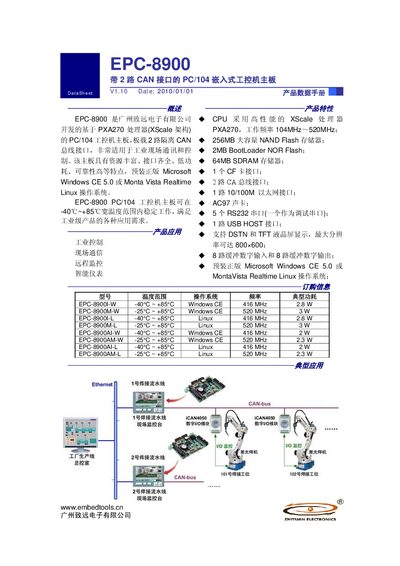

Data sheet for the EPC-8900 PC/104 embedded industrial computer board with dual isolated CAN interfaces.
The EPC-8900 is an embedded PC/104 industrial computer board developed by Zhiyuan Electronics. It features a XScale PXA270 processor, 2 MB boot ROM, 64 MB SDRAM, 256 MB NAND flash, and a rich set of I/O including dual isolated CAN, Ethernet, USB, RS‑232, and LCD interfaces. The board operates in a wide temperature range and can be supplied with a single 5 V source.
The document provides detailed hardware specifications, electrical parameters, mechanical dimensions, and supported software drivers for Windows CE 5.0 and MontaVista Realtime Linux. It also lists optional accessories and ordering information. This manual is written in Chinese.
| Processor | XScale PXA270 416 MHz / 520 MHz |
|---|---|
| System Memory | 64 MB SDRAM |
| Flash Storage | 256 MB NAND Flash (user‑available 160 MB) |
| CAN Interfaces | 2 isolated CAN bus interfaces |
| Ethernet | 10/100 M Ethernet |
| RS‑232 Ports | 5 ports (3 full‑function) |
The board can run Microsoft Windows CE 5.0 or MontaVista Realtime Linux.
It provides two isolated CAN bus interfaces.
