PCM-8208BS is a PC/104 bus-based intelligent high-speed analog input card that fully complies with the PC/104 bus specification. The card has 16 single-ended input channels, which can be combined and configured as differential input channels. The internal 5-level adjustable programmable gain amplifier (PGA) has an input range of ±10V to ±0.625V. The card is a 16-bit analog/digital converter that can be used for some analog signal acquisition applications such as industrial field sensor signal detection, power detection, process control signal measurement, and flow measurement.
The PCM-8208BS is an intelligent PC/104 analog input card designed for industrial signal acquisition, process control, and flow measurement. It complies fully with the PC/104 bus specification and offers configurable single‑ended or differential inputs.

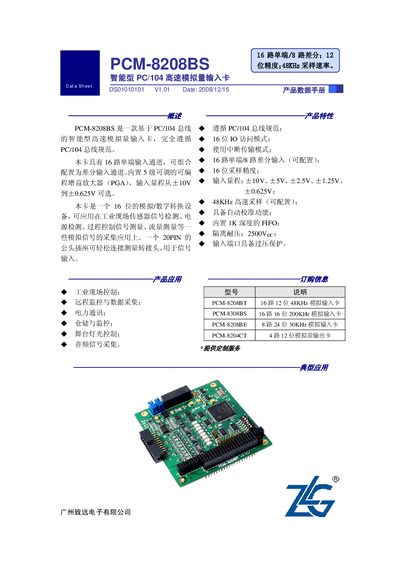

Key features include 16‑bit resolution, selectable input ranges from ±10 V to ±0.625 V, programmable gain, FIFO buffering, over‑voltage protection, and a 20‑pin connector for easy wiring. The card operates from -40 °C to +85 °C and includes ESD protection up to 8 kV. This manual is written in Chinese.
| Channels | 16 single‑ended / 8 differential |
|---|---|
| Sampling rate | 48 kHz |
| Gain options | 1, 2, 4, 8, 16 |
| FIFO depth | 1024 samples |
| Input protection | ±30 V |
| Power consumption | +5 V @200 mA typical, 400 mA max |
| Operating humidity | 5 %–95 % RH, non‑condensing |
It provides 16 single‑ended channels, which can be configured as 8 differential channels.
The card supports a maximum sampling rate of 48 kHz.
Yes, each input is protected up to ±30 V.
