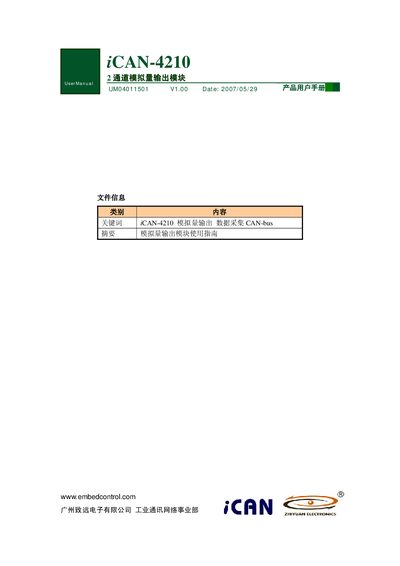

iCAN-4210 is a 2-channel analog output module in the iCAN series of distributed I/O modules. It uses CAN bus for communication and has two output modes, voltage and current. It can be set via CAN bus or by DIP switch.
This manual describes the features and technical specifications of the UM04011501 2‑channel analog output module, including its 16‑bit DAC, voltage and current output ranges, and isolation rating. It also explains the CAN‑bus communication settings, MAC ID configuration, and indicator LEDs.
Installation, wiring diagrams, calibration procedures, and safety guidelines are provided, along with example application code for VC and VB environments. Contact information for Zhiyuan Electronics support is listed at the end of the document. This manual is written in Chinese.
| DAC resolution | 16‑bit |
|---|---|
| Output voltage range | 0‑10 V |
| Output current range | 0‑20 mA / 4‑20 mA |
| Accuracy (full scale) | 0.01 % FS |
| Isolation voltage | 2500 Vdc |
| Operating temperature | -25 °C to +70 °C |
The module provides an analog voltage output from 0 V to 10 V.
It has two independent analog output channels.
The isolation voltage is rated at 2500 Vdc.
The output accuracy is 0.01 % of full scale.
