SE95 is a temperature digital converter with built-in bandgap temperature sensor and Σ-Δ analog-to-digital conversion function
The SE95 is a digital temperature sensor with I2C interface, offering high‑resolution temperature measurement and programmable alarm thresholds. It can operate from –55 °C to +125 °C and supports multiple device addresses on a single bus.

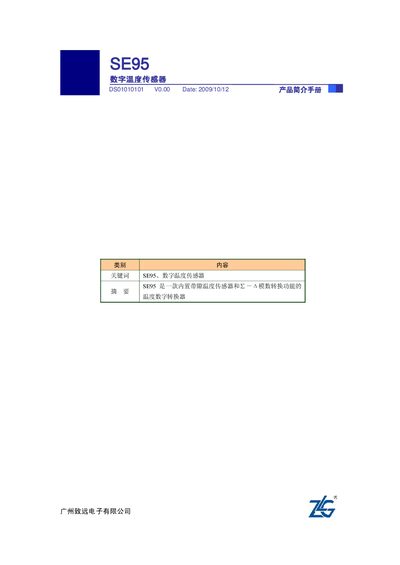

The manual includes an overview, feature list, detailed specifications, functional description, pin configuration and pin description tables, as well as electrical characteristics and package information. This manual is written in Chinese.
| Supply voltage | 2.8 V – 5.3 V |
|---|---|
| I2C bus speed | 400 kHz |
| Package types | SO8, TSSOP8, MSOP8 |
Up to eight devices can share the same I2C bus.
Pins A0, A1, and A2 are used to set the device address.
The sensor provides a resolution of 0.03125 °C using a 13‑bit ADC.
