XGate-DVN10 is an embedded DeviceNet protocol conversion module with high real-time performance and flexible application. It supports up to 128-byte I/O messages and 250-byte explicit messages, suitable for various industrial applications. The compact size of the module allows easy integration into user devices, eliminating the need for secondary development for data exchange with XGate-DVN10.
The XGate-DVN10 is an embedded DeviceNet slave protocol transform module that integrates a DeviceNet protocol stack. It offers high real‑time performance and supports up to 128‑byte IO messages and 250‑byte explicit messages, making it suitable for interference‑prone, time‑critical industrial environments.

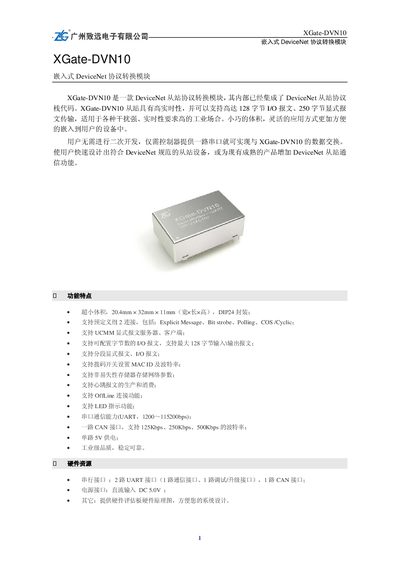

The manual covers functional features, hardware resources such as UART and CAN interfaces, software resources including configuration demos, typical application scenarios, download links for documentation and tools, and contact information for sales and technical support. This manual is written in Chinese.
| Physical dimensions | 20.4 mm × 32 mm × 11 mm |
|---|---|
| Package type | DIP24 |
| Maximum IO message size | 128 bytes |
| Maximum explicit message size | 250 bytes |
| UART baud rate range | 1200 bps – 115200 bps |
| CAN bus supported speeds | 125 kbps, 250 kbps, 500 kbps |
| Power supply | 5 V DC |
The module measures 20.4 mm by 32 mm by 11 mm.
It includes two UART ports (one for communication and one for debugging) and one CAN interface.
The device can handle IO messages up to 128 bytes.
It operates from a single 5 V DC supply.
