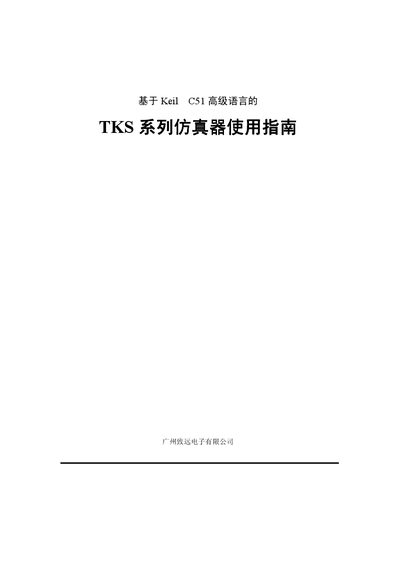

The ZLG TKS series emulator user manual provides setup, selection, and Keil IDE simulation instructions for 80C51‑based microcontrollers.
This manual introduces the TKS series emulator developed by ZLG, describing its technical advantages, supported microcontroller families, and the range of simulation chips available. It also offers guidance on selecting the appropriate model and configuring the hardware.
The guide walks users through preparing the Keil IDE environment, creating projects, setting target devices, and performing hardware simulation. Detailed instructions cover variable inspection, command‑line operations, peripheral menus, and safe shutdown procedures. This manual is written in Chinese.
| Power supply voltage | 2.7‑5.5 V |
|---|---|
| Real‑time simulation frequency | 0‑24 MHz |
| Supported MCU families | Philips 80C51 series and compatible 80C51 cores |
Select the Debug menu and click Start/Stop Debug Session, or type exit in the command input window.
Enter the variable assignment in the command input window, e.g., P1=0x03 and press Enter to update the value.
The TKS‑58 supports a wide voltage range of 2.7 V to 5.5 V.
