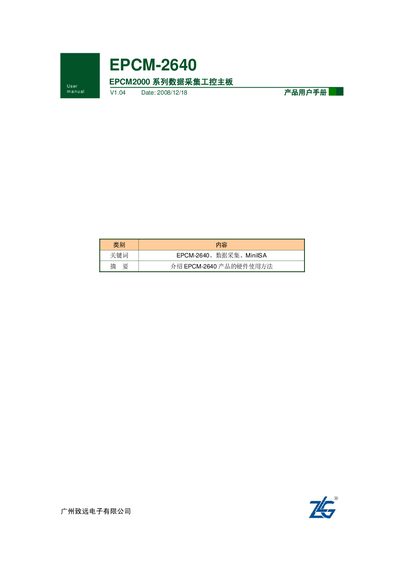

Guangzhou ZLG EPCM-2640 EPCM2000 series date collect IPC motherboard products user manual

Introduce the hardware usage method of EPCM-2640 product

Brand: ZLG
Category: Board
Document type: User Manual
Language: Chinese
Pages: 30
File format: PDF
File size: 1.3 MB
Published: 05 January, 2012
Updated: 30 September, 2023
Model: EPCM2000
MD5 checksum: 8EC25480C0E9FFE56C1ED17DF0780F96
PDF: Guangzhou ZLG EPCM-2640 EPCM2000 series date collect IPC motherboard products user manual PDF

About this manual

The EPCM‑2640 is a data‑acquisition industrial control motherboard from ZLG, based on the NXP LPC2377 32‑bit ARM processor and running the µC/OS‑II real‑time operating system. It offers a range of analog and digital I/O, Ethernet, RS‑232/RS‑485, I²C, MiniISA expansion and CF‑card storage.

The manual provides an overview of the EPCM2000 series, detailed hardware specifications, electrical parameters, interface descriptions and development resources, as well as a disclaimer and support information. This manual is written in Chinese.

What's inside

Series Overview
Series Product Selection
EPCM‑2640 Overview
Product Features
Electrical Performance
Hardware Development Environment
Interface Description
Disclaimer

Specifications

Processor	NXP LPC2377 32‑bit ARM
Operating System	µC/OS‑II real‑time OS
Ethernet Interface	1×10/100 M industrial Ethernet
RS‑232 Ports	2 ports (UART0 3‑line, UART1 modem)
Power Supply	4.75 V–5.25 V, up to 600 mA

Frequently asked questions

What processor does the EPCM‑2640 use?

It uses the NXP LPC2377 32‑bit ARM processor.

What is the operating voltage range for the board’s power supply?

The board operates from 4.75 V to 5.25 V, with a maximum supply current of 600 mA.
