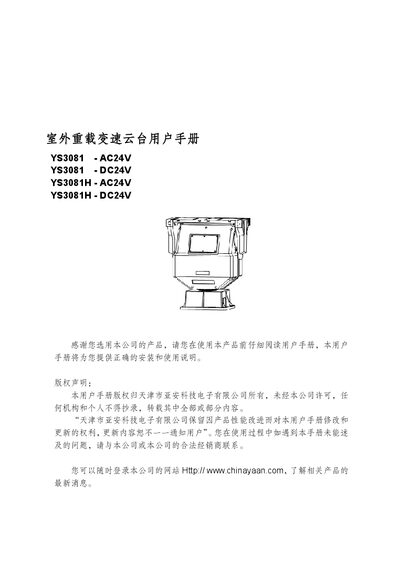

User manual for the YAAN YS3081/YS3081H outdoor heavy‑duty variable‑speed PTZ camera, covering safety, installation, operation and specifications.
The manual provides safety guidelines, product overview, and detailed installation steps for the YAAN YS3081/YS3081H outdoor heavy‑duty variable‑speed PTZ camera. It includes information on recommended accessories, grounding, lightning protection, and handling precautions.
Operational features such as preset positions, automatic scanning, cruise, apple‑skin scan, 360° step scan, and watchdog functions are described, along with command settings, remote upgrade procedures, and troubleshooting tips. This manual is written in Chinese.
| Input Voltage | AC24V ±25% 50/60Hz / DC24V ±20% |
|---|---|
| Peak Power | 85 W (no heater) / 115 W (with heater) |
| Horizontal Rotation Angle | 0 ~ 360° continuous |
| Vertical Rotation Angle | -45° ~ +45° |
| Horizontal Speed | 0.01 ° ~ 30°/s |
| Vertical Speed | 0.01 ° ~ 15°/s |
| Maximum Load (Top Load) | 50 kg |
| Protection Rating | IP66 |
| Operating Temperature | -25 °C ~ +65 °C |
| Dimensions (L×W×H) | 341 mm × 206 mm × 390 mm |
| Weight | 20 kg |
| Preset Positions | Up to 80 |
The device can store up to 80 preset positions.
It supports industry V0.0, V1.0, YAAN, Pelco‑P and Pelco‑D protocols via RS‑485/RS‑422.
The top‑load capacity is 50 kg.
Install a lightning arrester and ensure grounding resistance is less than 4 Ω as required by GB50198‑94.
