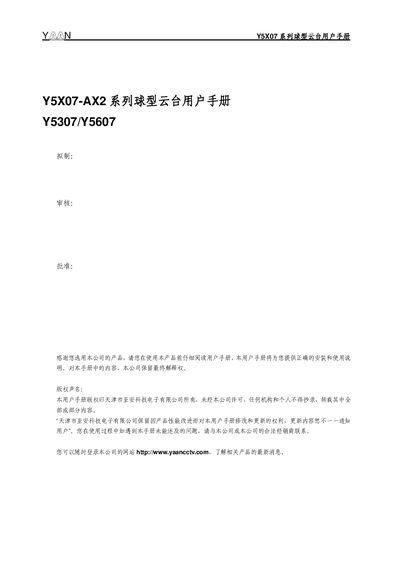

The YAAN Y5X07-AX2 ball gimbal user manual provides safety instructions, installation steps, technical specifications, and wiring details.
The Y5X07‑AX2 ball‑type gimbal is a weather‑proof PTZ mount designed for indoor and outdoor surveillance cameras. It offers adjustable horizontal (0°‑355°) and vertical (0°‑90°) rotation angles, selectable communication protocols, and optional heating for low‑temperature environments.
This manual covers safety precautions, product features, technical specifications, detailed descriptions of the YA, YD and YP mechanisms, wiring identification, installation methods, limit adjustments, and troubleshooting guidance. This manual is written in Chinese.
| Power supply | AC24V ±25%, 50 Hz |
|---|---|
| Horizontal rotation angle | 0° ~ 355° (adjustable) |
| Vertical rotation angle | 0° ~ 90° (adjustable) |
| Horizontal rotation speed | 12°/s |
| Vertical rotation speed | 6°/s |
| Weight | ≈2.3 kg |
| Operating temperature (outdoor) | -35 °C ~ 55 °C |
| Maximum camera size | 120 mm × 60 mm × 55 mm |
